Heatshrink Dual Wall Glue L 3-1 (1.2M)

Part Number: XDW3BK

Heatshrink Dual Wall Glue L 3-1 (1.2M)

Part Number: XDW3BK

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

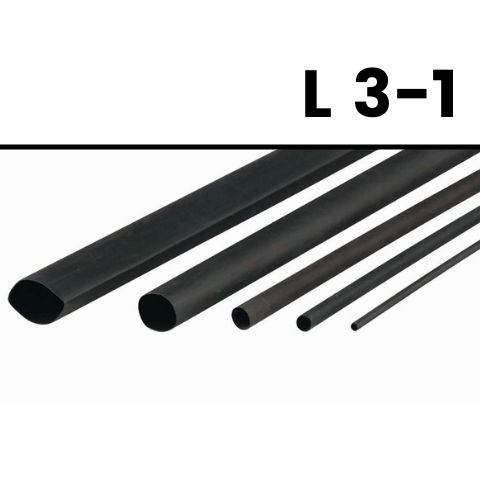

  • XDW Dual Walled Flexible Glue Lined Heatshrink 3mm 1.2M

    XDW is a thin walled heatshrink tube with a glue lined inner surface. It is made from a single extrusion of polyolefin that is partially irradiated and as such is commonly referred to as 'dual walled'.

    XDW Dual Walled Flexible Glue Lined Heatshrink Features

    • Highly flexible
    • Very high shrink ratio 3:1
    • Flame retarded
    • Good mechanical adhesion

    This is a material with many applications in the electrical and mechanical protection areas. Since the glue holds the tubing in place it is commonly used for brake and fuel pipe protection in the automotive industry. Typical electrical applications are strain relief on cords, and insulation repair. In general the tube is not recommended for waterproofing since the glue layer is primarily a mechanical adhesion and is thin. Use SMDW for fail safe waterproof joints.

  • Breakdown Voltage20 kV/mm wall thickness
    Conformant StandardsUL: MIL-1-23053/4: JIS
    Continuous Operating Temp-55°C to +110°C
    Elongation at Break Point200%
    FlammabilityAll tubing flame test: pass
    Longitudinal Shrinkage15%
    MaterialDual wall, flexible, flame retarded polyolefin with modified polyamide adhesive sealant
    Shrinkage TempStarts at 90°C, completed at 125°C
    Tensile Strength10.5 MPa
    UV ResistancePassed-ISO 1408
    Voltage Rating600 V
    Volume Resistivity1.0 x 1014 ohm cm
    Water Absorption0.005
