Heatshrink Dual Wall Glue L 9-3 (1.2M) - XDW10BK
Heatshrink Dual Wall Glue L 9-3 (1.2M)
Part Number: XDW10BKHeatshrink Dual Wall Glue L 9-3 (1.2M)
Part Number: XDW10BKSign in to your Aire-Biz account to view pricing and stock levels.
Sign in Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

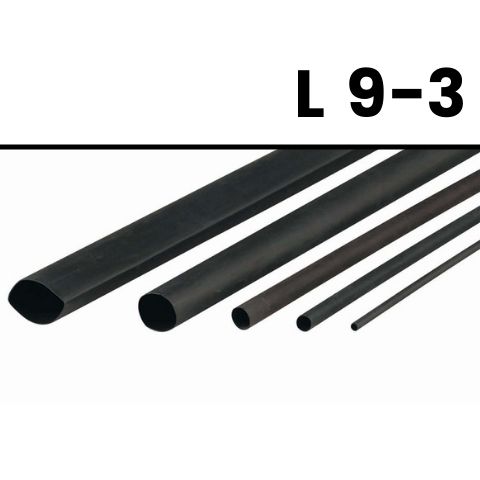

XDW Dual Walled Flexible Glue Lined Heatshrink 9mm Black 1.2M
XDW is a thin walled heatshrink tube with a glue lined inner surface. It is made from a single extrusion of polyolefin that is partially irradiated and as such is commonly referred to as 'dual walled'.
XDW Dual Walled Flexible Glue Lined Heatshrink Features
- Highly flexible
- Very high shrink ratio 3:1
- Flame retarded
- Good mechanical adhesion
This is a material with many applications in the electrical and mechanical protection areas. Since the glue holds the tubing in place it is commonly used for brake and fuel pipe protection in the automotive industry. Typical electrical applications are strain relief on cords, and insulation repair. In general the tube is not recommended for waterproofing since the glue layer is primarily a mechanical adhesion and is thin. Use SMDW for fail safe waterproof joints.
| Breakdown Voltage | 20 kV/mm wall thickness |
| Conformant Standards | UL: MIL-1-23053/4: JIS |
| Continuous Operating Temp | -55°C to +110°C |
| Elongation at Break Point | 200% |
| Flammability | All tubing flame test: pass |
| Longitudinal Shrinkage | 15% |
| Material | Dual wall, flexible, flame retarded polyolefin with modified polyamide adhesive sealant |
| Shrinkage Temp | Starts at 90°C, completed at 125°C |
| Tensile Strength | 10.5 MPa |
| UV Resistance | Passed-ISO 1408 |
| Voltage Rating | 600 V |
| Volume Resistivity | 1.0 x 1014 ohm cm |
| Water Absorption | 0.005 |
