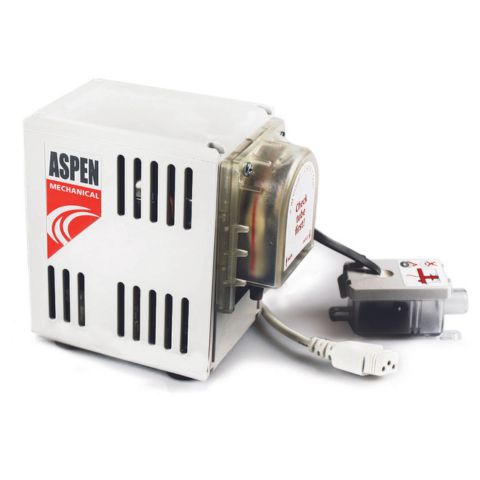

Aspen Mechanical Peristaltic With Alarm - FP2079

Aspen Mechanical Peristaltic With Alarm

The Mechanical peristaltic pump operates by using a remote reservoir with an internal float mechanism. This model is supplied with a high level alarm output.

The pump is designed to be mounted remotely if required and has a 3 metre (9.8ft) lead to the float switch. Simply position the float switch in the condensate tray or fix to the drain-pipe connection (depending on chosen reservoir). Then connect the reservoir to the pump.

Performance:

• Water flow rate: 6.25ltrs/hour at 12m head
• 12 metres discharge head
• Horizontal: In excess of 100m

Other features:

• Self-priming lifts 3 metres
• No siphoning back
• No loud sound from dry running
• Manual test switch
• Pumps water, fibrously contaminated water and air
• Fire retardant plastics
• Inlet / outlet size: 6mm
• Push-in plug
• Wall-mounted bracket
• Operates on a float switch
• 2 reservoir options available
• Supplied with the alarm option

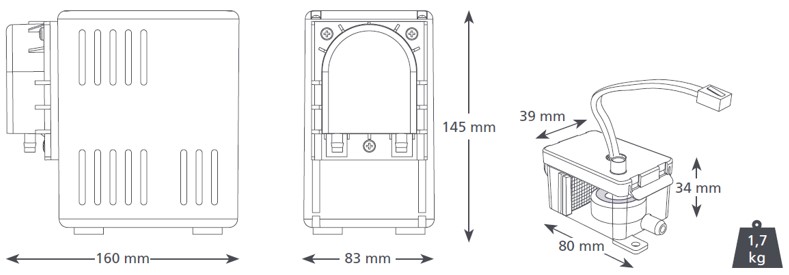

L: 160mm W: 83mm H: 145mm

Aspen Technical Sheet FP2079
