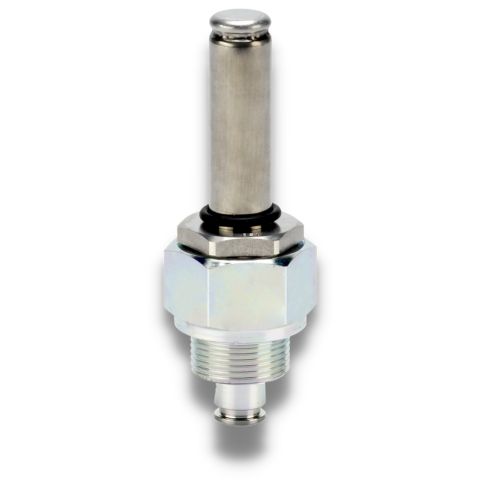

Danfoss EVM NC (65 Bar MWP) - 27B1120

Danfoss Solenoid Pilot Valve, Type EVM (NC) and EVM (NO)

Intended for mechanical control of a main valve

EVM is a solenoid pilot valve for use when on/off operation of the main valve is required. EVM valves are intended for use with Danfoss solenoid valve coils. Together with CVH, an EVM can also be used as an independent solenoid valve.

Features:

• Applicable to HCFC, non flammable HFC, R717 (Ammonia) and R744 (CO2). The use of Pilots with flammable hydrocarbons is not recommended
• Extremely accurate pressure and temperature control.
• The pilot valves can be screwed directly into the main valve, thus avoiding the necessity of welding, soldering and separate pilot lines.
• The pilot valves can be mounted directly in the ICS, PM or ICF valve or it can be connected via an external pilot line and a CVH housing.
• All pilot valves can be used on all sizes of main valves.
• Several pilot valves can be connected in series or in parallel to provide many functions in the same ICS or ICF valve.
• All pilot valves are delivered with gaskets.

Danfoss Data Sheet - CVP EVM Pilot Valves - 2023.09
