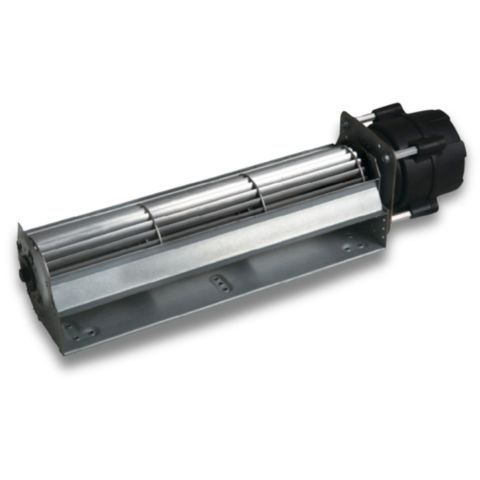

EC Cross Flow Fan - 60 x 180 - Fixed Speed 2300rpm - CFEC60180R
EC Cross Flow Fan - 60 x 180 - Fixed Speed 2300rpm
Part Number: CFEC60180REC Cross Flow Fan - 60 x 180 - Fixed Speed 2300rpm
Part Number: CFEC60180RSign in to your Aire-Biz account to view pricing and stock levels.
Sign in Not an Airefrig customer? Complete our online account application form here to apply for a credit account.
Henry Cross Flow EC Motor & Impellar - fixed speed configuration.
Specifications:
- Direct drive in 60mm diameter fan wheel
- Offered in 180,300,360 mm lengths
- High efficiency EC motor
- Operating temperature - 30°C to +50°C
- Long ball life bearings
- Protection class IP65
- Insulation Class B
- All materials conform to RoHS
- CE approved
| Air Volume m³/hr | 132 |
| Amps | 0.07 |
| Brand | Henry |
| Fan Dimensions | 60D x 180L |
| Fan Wheel Diameter | 60mm |
| Frequency Hz | 50 |
| Henry Part Number | CFEC60-180 |
| Input Watts | 7.7 |
| Max static (Pa) | 10 |
| Motor Type | EC |
| Operating Temperature | -30°C to +50°C |
| RPM | 2300 |
| Speed | Fixed |
| Voltage | 230V |

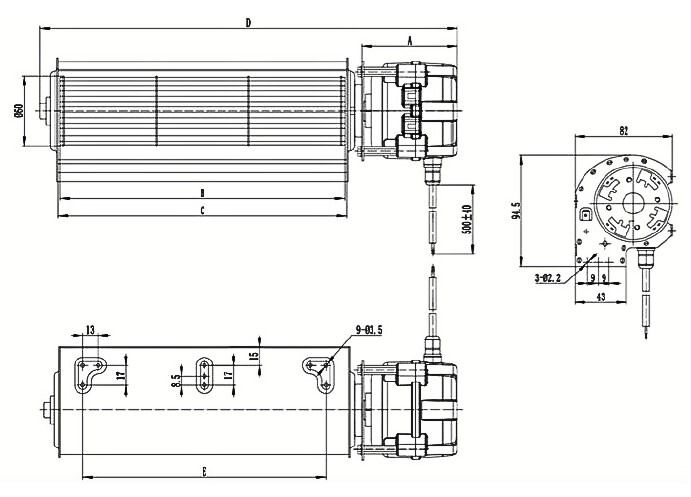

A: 80mm B: 180mm C: 184mm D: 285mm E: 153.5mm
