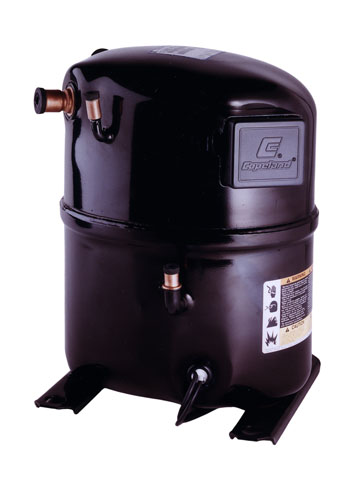

Copeland Compressor 1PH POE Oil Rotalocks Included - CS10K6EPFJ595

Copeland Compressor 1PH POE Oil Rotalocks Included

Part Number: CS10K6EPFJ595

Copeland Compressor 1PH POE Oil Rotalocks Included

Part Number: CS10K6EPFJ595
Copeland

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

  • CS10K6E-PFJ-595 COPELAND CS SERIES RECIPROCATING HERMETIC COMPRESSORS



    The Copeland CS hermetic compressors are designed for commercial refrigeration applications. They feature a “low-side” gas management system. The steel shell contains cool, low pressure suction gas that surrounds and cools the electric motor and mechanical compressor parts, resulting in lower motor and discharge gas temperatures.

    Many years of experience in the research, design, and manufacturing of compressors are culminated in the CS series compressors outstanding features such as its wide range of:

    • Model Selections

    • Electrical Choices

    • Approved Operating Conditions

    • Refrigerant Options - R134a, R404A and R507

    These attributes are indicators of this compressor's versatility.



    Optimized Compressor Design

    Based on its advanced reciprocating design, Copeland’s CS line was built with greater reliability and higher efficiency levels in mind. This new generation of hermetic compressors has been optimized with enhanced features that improve performance and durability in any condition: strong low-voltage start capability, decreased re-expansion volume for higher efficiency, and reduced bearing load for longer life.

    These compressors have also been modified for use with HFC-compatible polyol ester oils. Utilizing POE oil solves miscibility and solubility issues associated with traditional mineral oils. A redesigned wrist pin improves oil flow at high-compression ratios, further safeguarding the life of the compressor.



  • General Specifications
    Nominal HP1.3 HP
    Displacement38.1 cm³/r
    Suction Line Connection1-1/4" 12UNF 3/4 ODF
    Discharge Line Connection1" 14UNF 3/8 ODF
    Connection Typerotalock
    Weight31 kg
    Oil Charge1.27 L
    Oil TypePOE
    Oil Sight GlassYes
    ElectricsIncludes CSR Electrics & Box
    Electrical Specifications
    Motor TypeCSR
    Max Continuous Current14.2 amps
    Locked Rotor Amps55 amps
    Rated Load Amps10.1 amps
    Crankcase Heater240V 40W Wrap Around
    Main Winding Resistance1.39 OHMS (+/- 7%)
    Start Winding Resistance3.79 OHMS (+/- 7%)
  • Crankcase Heater018008800
    Discharge Service Gasket0200028005PK
    Discharge Service ValveR051FA5DS
    Relay040000154
    Run Capacitor014004810
    Start Capacitor014003602
    Suction Service Gasket0200028025PK
    Suction Service ValveR052FB4DS
  • copeland_cs_01

    Units Dimensions (mm)
    A348
  • copeland_CSR
  • R404A
    Cond Temp (°C)Evaporating Temperature (°C)
    -15-10-50
    45Capacity (w)1720230029503700
    Input (w)1130128014001516
    Current (Amps)6.26.77.27.7
    50Capacity (w)1395191525003150
    Input (w)1110128014301563
    Current (Amps)6.16.77.47.9
    55Capacity (w)1080154520552622
    Input (w)1070127014401590
    Current (Amps)5.96.77.48

    Note:

    4.4 Deg Return Gas, no Sub-Cooling, 35 Deg Ambient
    Supplied with: Internal Motor Protection, Rubber Mounting Kit
    R134A
    Cond Temp (°C)Evaporating Temperature (°C)
    -15-10-5051012.8
    45Capacity (w)800120017402390310039604480
    Input (w)62472282292099510441070
    Current (Amps)4.580055.45.65.85.9
    50Capacity (w)650101015102120279035704040
    Input (w)593700815930102210891125
    Current (Amps)4.34.74.95.35.75.96
    55Capacity (w)84013001850246031903630
    Input (w)679805928103411251171
    Current (Amps)4.54.95.35.76.16.3

    Note:

    4.4 Deg Return Gas, no Sub-Cooling, 35 Deg Ambient
    Supplied with: Internal Motor Protection, Rubber Mounting Kit
