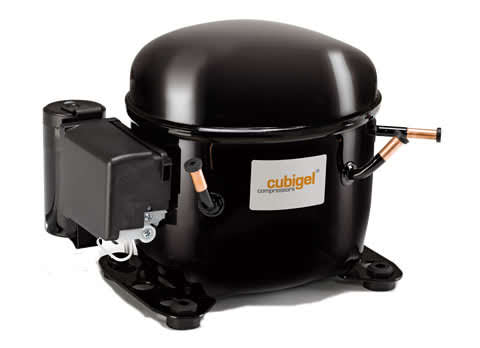

Cubigel Compressor R134a HMBP 1/4 HP 9.09cc High Efficiency - GLY90RAB

Cubigel Compressor R134a HMBP 1/4 HP 9.09cc High Efficiency

Part Number: GLY90RAB

Cubigel Compressor R134a HMBP 1/4 HP 9.09cc High Efficiency

Part Number: GLY90RAB
Cubigel

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

  • Cubigel have produced more than 100 million compressors and have over 50 years of experience developing compressors for the commercial refrigeration market. Cubigel are focused on the development of quality compressors and condensing units which are supported by European manufacturing in Barcelona, Spain.

    With innovative research and development, Cubigel compressors are designed to optimize energy consumption in response to the issue of global warming. The high efficiency models reduce energy consumption of commercial refrigeration appliances by between 10% and 30%, with respect to standard ranges.

    Cubigel compressors range from 2.2cc up to 34cc and are available in a comprehensive range of refrigerants for today’s market. Due to this large range and a universal drop-in design, Cubigel compressors can be used as a replacement for most common compressors.

    Contact your local Airefrig Australia branch and a sales engineer will assist you with selecting a Cubigel compressor that is appropriate for your application.

  • General Specifications
    Nominal HP1/4 hp
    Displacement9.09 cm³
    FanFan Cooled
    Suction Line Connection6.5 mm
    Charge Line Connection6.5 mm
    Discharge Line Connection4.9 mm
    Connection Typestub tube
    Weight10.8 kg
    Oil Charge300 ml
    Oil TypeISO VG 32 Ester
    Electrical Specifications
    Voltage220-240 / 1 / 50 Hz
    Motor TypeCSR
    Max Continuous Current3.2 amps
    Locked Rotor Amps11 amps
    Rated Load Amps1.77 amps
    Main Winding Resistance8.31 Ω @ 25 ºC
    Start Winding Resistance18.9 Ω @ 25 ºC
  • Start Capacitor102661
    Run Capacitor102254
    Relay405147
    Overload102180
  • cubigel_d9
  • R134A
    Cond Temp (°C)Evaporating Temperature (°C)
    -25-20-15-10-50510
    45Capacity (w)2212953884996287739371120
    Input (w)165187209231254277301325
    Current (Amps)1.061.131.211.31.391.481.581.69
    50Capacity (w)2042723584625847238801056
    Input (w)167190214239264290316342
    Current (Amps)1.071.151.241.331.431.531.651.77
    55Capacity (w)186248327424540672823992
    Input (w)168194220247274302330359
    Current (Amps)1.071.161.261.361.471.591.711.85

    Note:

    Operating Conditions ASHRAE
    Based on +46 ºC Liquid temp & +35 ºC Suction gas
