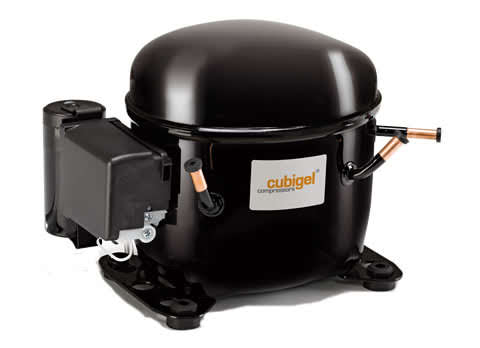

Cubigel Compressor R134a HMBP 1/6 HP 4.56cc High Efficiency - GLY45RAB

Cubigel Compressor R134a HMBP 1/6 HP 4.56cc High Efficiency

Part Number: GLY45RAB

Cubigel Compressor R134a HMBP 1/6 HP 4.56cc High Efficiency

Part Number: GLY45RAB
Cubigel

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

  • Cubigel have produced more than 100 million compressors and have over 50 years of experience developing compressors for the commercial refrigeration market. Cubigel are focused on the development of quality compressors and condensing units which are supported by European manufacturing in Barcelona, Spain.

    With innovative research and development, Cubigel compressors are designed to optimize energy consumption in response to the issue of global warming. The high efficiency models reduce energy consumption of commercial refrigeration appliances by between 10% and 30%, with respect to standard ranges.

    Cubigel compressors range from 2.2cc up to 34cc and are available in a comprehensive range of refrigerants for today’s market. Due to this large range and a universal drop-in design, Cubigel compressors can be used as a replacement for most common compressors.

    Contact your local Airefrig Australia branch and a sales engineer will assist you with selecting a Cubigel compressor that is appropriate for your application.

  • General Specifications
    Nominal HP1/6 hp
    Displacement4.56 cm³
    FanFan Cooled
    Suction Line Connection6.5 mm
    Charge Line Connection6.5 mm
    Discharge Line Connection4.9 mm
    Connection Typestub tube
    Weight8.85 kg
    Oil Charge265 ml
    Oil TypeISO VG 32 Ester
    Electrical Specifications
    Voltage220-240 / 1 / 50 Hz
    Motor TypeCSR
    Max Continuous Current1.75 amps
    Locked Rotor Amps8.5 amps
    Rated Load Amps0.95 amps
    Main Winding Resistance16.5 Ω @ 25 ºC
    Start Winding Resistance20.8 Ω @ 25 ºC
  • Start Capacitor102660
    Run Capacitor102253
    Relay405957
    Overload102167
  • cubigel_d7
  • R134A
    Cond Temp (°C)Evaporating Temperature (°C)
    -25-20-15-10-50510
    45Capacity (w)91131180238306381468562
    Input (w)90101112123135148161174
    Current (Amps)0.60.640.680.720.760.810.860.91
    50Capacity (w)85121166221285357438529
    Input (w)91103115128141154168183
    Current (Amps)0.610.650.690.730.780.830.890.95
    55Capacity (w)78110152204264333411498
    Input (w)92105118132146161176192
    Current (Amps)0.610.650.70.750.80.860.920.99

    Note:

    Operating Conditions ASHRAE
    Based on +46 ºC Liquid temp & +35 ºC Suction gas
