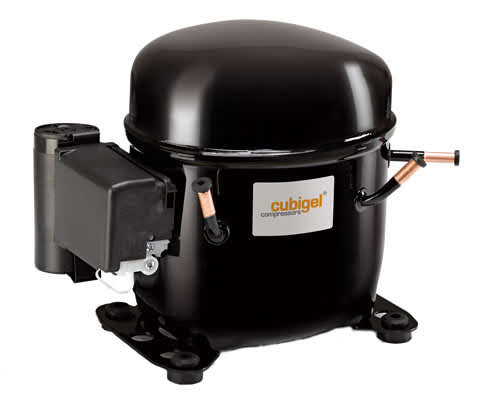

Cubigel Compressor R134a HMBP 3/8 HP 12.1cc High Efficiency - GPY12RAB

Cubigel Compressor R134a HMBP 3/8 HP 12.1cc High Efficiency

Part Number: GPY12RAB

Cubigel Compressor R134a HMBP 3/8 HP 12.1cc High Efficiency

Part Number: GPY12RAB
Cubigel

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

  • Cubigel have produced more than 100 million compressors and have over 50 years of experience developing compressors for the commercial refrigeration market. Cubigel are focused on the development of quality compressors and condensing units which are supported by European manufacturing in Barcelona, Spain.

    With innovative research and development, Cubigel compressors are designed to optimize energy consumption in response to the issue of global warming. The high efficiency models reduce energy consumption of commercial refrigeration appliances by between 10% and 30%, with respect to standard ranges.

    Cubigel compressors range from 2.2cc up to 34cc and are available in a comprehensive range of refrigerants for today’s market. Due to this large range and a universal drop-in design, Cubigel compressors can be used as a replacement for most common compressors.

    Contact your local Airefrig Australia branch and a sales engineer will assist you with selecting a Cubigel compressor that is appropriate for your application.

  • General Specifications
    Nominal HP3/8 hp
    Displacement12.01 cm³
    FanFan Cooled
    Suction Line Connection8.1 mm
    Charge Line Connection8.1 mm
    Discharge Line Connection6.5 mm
    Connection Typestub tube
    Weight13.4 kg
    Oil Charge400 ml
    Oil TypeISO VG 32 Ester
    Electrical Specifications
    Voltage220-240 / 1 / 50 Hz
    Motor TypeCSR
    Max Continuous Current4.1 amps
    Locked Rotor Amps14 amps
    Rated Load Amps2.35 amps
    Main Winding Resistance5.3 Ω @ 25 ºC
    Start Winding Resistance16.75 Ω @ 25 ºC
  • Start Capacitor102661
    Run Capacitor102255
    Relay405149
    Overload102199
  • cubigel_d11
  • R134A
    Cond Temp (°C)Evaporating Temperature (°C)
    -25-20-15-10-50510
    45Capacity (w)300402526672842103412481484
    Input (w)222250278308339370403437
    Current (Amps)1.281.41.521.651.791.932.082.24
    50Capacity (w)27636848462178296411701398
    Input (w)225255286319353387423460
    Current (Amps)1.291.421.561.71.852.012.182.35
    55Capacity (w)25033444157072189610921312
    Input (w)227260295330366404443482
    Current (Amps)1.31.441.591.751.912.092.272.46

    Note:

    Operating Conditions ASHRAE
    Based on +46 ºC Liquid temp & +35 ºC Suction gas
