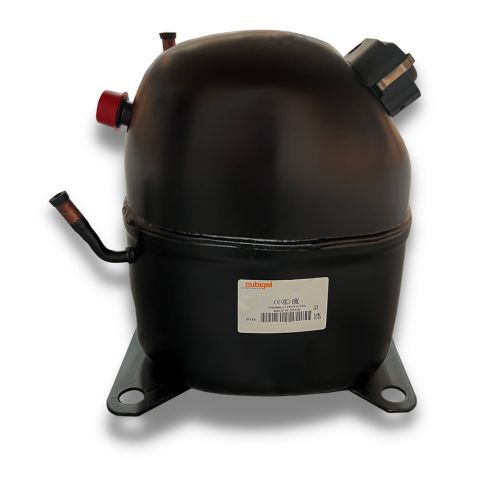

Cubigel Compressor R134a HMBP 7/8 HP 29.95cc Fan Cooling - GS30TB-V

Cubigel Compressor R134a HMBP 7/8 HP 29.95cc Fan Cooling

Part Number: GS30TB-V

Cubigel Compressor R134a HMBP 7/8 HP 29.95cc Fan Cooling

Part Number: GS30TB-V
Cubigel

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

  • Cubigel have produced more than 100 million compressors and have over 50 years of experience developing compressors for the commercial refrigeration market. Cubigel are focused on the development of quality compressors and condensing units which are supported by European manufacturing in Barcelona, Spain.

    With innovative research and development, Cubigel compressors are designed to optimize energy consumption in response to the issue of global warming. The high efficiency models reduce energy consumption of commercial refrigeration appliances by between 10% and 30%, with respect to standard ranges.

    Cubigel compressors range from 2.2cc up to 34cc and are available in a comprehensive range of refrigerants for today’s market. Due to this large range and a universal drop-in design, Cubigel compressors can be used as a replacement for most common compressors.

    Contact your local Airefrig Australia branch and a sales engineer will assist you with selecting a Cubigel compressor that is appropriate for your application.

  • General Specifications
    Nominal HP7/8 hp
    Displacement29.9 cm³
    FanFan Cooled
    Suction Line Connection5/8 SAE flare
    Charge Line Connection9.7 mm
    Discharge Line Connection8 mm
    Connection Typestub tube / rotalock
    Weight22.7 kg
    Oil Charge887 ml
    Oil TypeISO VG 46 Ester
    Electrical Specifications
    Voltage220-240 / 1 / 50 Hz
    Motor TypeCSR
    Max Continuous Current8.8 amps
    Locked Rotor Amps29 amps
    Rated Load Amps5.5 amps
    Main Winding Resistance2.04 Ω @ 25 ºC
    Start Winding Resistance8.06 Ω @ 25 ºC
  • Start Capacitor100680
    Run Capacitor102083
    Relay100479
    Overload101460
  • cubigel_d14
  • R134A
    Cond Temp (°C)Evaporating Temperature (°C)
    -25-20-15-10-50510
    45Capacity (w)504739104114111848235229233561
    Input (w)4205126006867708509271002
    Current (Amps)2.572.963.343.714.074.424.755.08
    50Capacity (w)42765695213171747224528103442
    Input (w)4005066087088059009911080
    Current (Amps)2.492.943.383.814.224.635.035.41
    55Capacity (w)34957286312211647213926983325
    Input (w)38049961673084194910551157
    Current (Amps)2.42.913.413.94.384.855.35.75

    Note:

    Operating Conditions ASHRAE
    Based on +46 ºC Liquid temp & +35 ºC Suction gas
