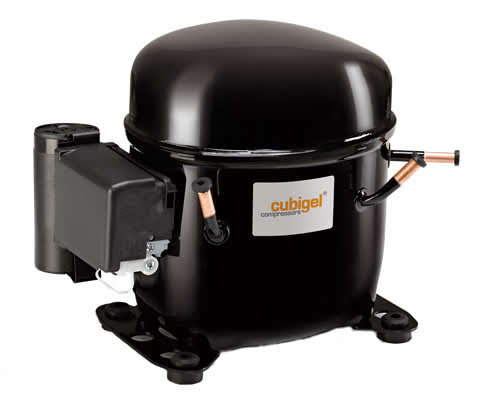

Cubigel Compressor R134a LBP 1/3 HP 14.32cc High Efficiency - GPY14NGA

Cubigel Compressor R134a LBP 1/3 HP 14.32cc High Efficiency

Part Number: GPY14NGA

Cubigel Compressor R134a LBP 1/3 HP 14.32cc High Efficiency

Part Number: GPY14NGA
Cubigel

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

  • Cubigel have produced more than 100 million compressors and have over 50 years of experience developing compressors for the commercial refrigeration market. Cubigel are focused on the development of quality compressors and condensing units which are supported by European manufacturing in Barcelona, Spain.

    With innovative research and development, Cubigel compressors are designed to optimize energy consumption in response to the issue of global warming. The high efficiency models reduce energy consumption of commercial refrigeration appliances by between 10% and 30%, with respect to standard ranges.

    Cubigel compressors range from 2.2cc up to 34cc and are available in a comprehensive range of refrigerants for today’s market. Due to this large range and a universal drop-in design, Cubigel compressors can be used as a replacement for most common compressors.

    Contact your local Airefrig Australia branch and a sales engineer will assist you with selecting a Cubigel compressor that is appropriate for your application.

  • General Specifications
    Nominal HP1/3 hp
    Displacement14.32 cm³
    FanFan Cooled
    Suction Line Connection8.1 mm
    Charge Line Connection8.1 mm
    Discharge Line Connection6.5 mm
    Connection Typestub tube
    Weight12.6 kg
    Oil Charge400 ml
    Oil TypeISO VG 32 Ester
    Electrical Specifications
    Voltage220-240 / 1 / 50 Hz
    Motor TypeRSIR
    Max Continuous Current4.4 amps
    Locked Rotor Amps19 amps
    Rated Load Amps2.57 amps
    Main Winding Resistance3.7 Ω @ 25 ºC
    Start Winding Resistance11.8 Ω @ 25 ºC
  • Start Capacitor102665
    Relay405178
    Overload102205
  • cubigel_d11b
  • R134A
    Cond Temp (°C)Evaporating Temperature (°C)
    -35-30-25-23.3-20-15-10
    45Capacity (w)200272370408491637807
    Input (w)232262296308332372415
    Current (Amps)2.372.432.512.532.62.712.84
    50Capacity (w)190263359398480626795
    Input (w)232265302315341384430
    Current (Amps)2.372.442.522.552.622.742.89
    55Capacity (w)180252349387470615784
    Input (w)232268308322351396445
    Current (Amps)2.372.442.532.572.652.782.94

    Note:

    Operating Conditions ASHRAE
    Based on +32 ºC Liquid temp & +32 ºC Suction gas
