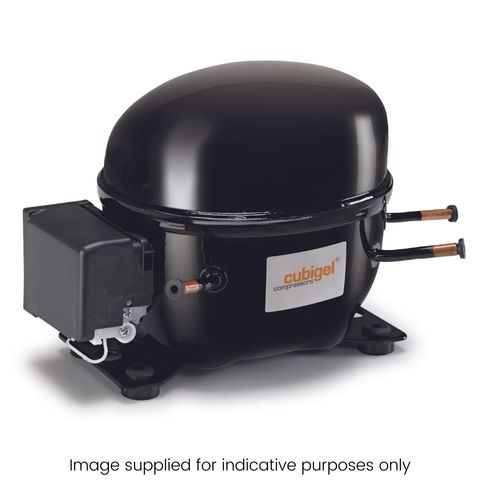

Cubigel Compressor R290 HMBP 1/3 HP 6.7cc High Efficiency - NUY70RAA

Cubigel Compressor R290 HMBP 1/3 HP 6.7cc High Efficiency

Part Number: NUY70RAA

Cubigel Compressor R290 HMBP 1/3 HP 6.7cc High Efficiency

Part Number: NUY70RAA
Cubigel

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

  • R290 & R600a Cubigel Compressors

    Cubigel Compressors® aims to provide quality and environmentally friendly products using cutting-edge technology. For this reason the company offers the most extended range for high efficiency Green Cooling compressors for R290 & R600a which is the consequence of the development of natural refrigerants during the last 15 years.

    The increasing use of natural refrigerants in commercial applications such as propane (R290) is a priority, not only owing to the need to replace HFC refrigerants which have a high impact on the environment, but also because they are more efficient in terms of performance and energy consumption.

    From a strictly technical point of view the use of these hydrocarbon refrigerants is a great solution because of their physical and chemical properties.

    R290 is the best alternative due to the fact that R290 has no direct contribution to global warming (GWP = 3) and zero Ozone Depletion Potential (ODP = 0). For this reason it makes both HC refrigerants R290 and R600a even more attractive.

    R600a is recommended for home appliances and small business applications and is already being used to replace R134a. For its part R290 or propane is a good alternative for light commercial applications successfully replacing R134a, R404A & even R22 in certain cases.

  • General Specifications
    Nominal HP1/3 HP
    Displacement6.7 cm³
    FanFan Cooling
    Suction Line Connection6.2 mm
    Charge Line Connection6.2 mm
    Discharge Line Connection4.9 mm
    Connection TypeStub Tube
    Weight9.6 kg
    Oil Charge200 ml
    Oil TypeISO VG 46 Ester
    Electrical Specifications
    Voltage220-240 / 1 / 50 Hz
    Motor TypeCSIR
    Max Continuous Current3.2 amps
    Locked Rotor Amps15 amps
    Main Winding Resistance6.66 Ω @ 25 ºC
    Start Winding Resistance30.6 Ω @ 25 ºC
  • Relay405175 or 105217
    Overload102199
    Start Capacitor104933
  • cubigel_r290_r600_dd4
  • cubigel_r290_r600_wd8
  • R290
    Cond Temp (°C)Evaporating Temperature (°C)
    -25-20-15-10-5057.210
    45Capacity (w)312393490602730875103411081208
    Input (w)223237251265278290302307313
    Current (Amps)22.022.052.082.112.142.182.192.21
    50Capacity (w)29336645656168281896910411136
    Input (w)229246263279294310324331338
    Current (Amps)2.012.042.082.112.152.192.242.262.29
    55Capacity (w)2733404215196327599049721063
    Input (w)235255274293311329347354363
    Current (Amps)2.022.062.12.152.22.252.312.342.37

    Note:

    Operating Conditions ASHRAE
    Based on +32ºC Liquid temp & +32ºC Suction gas
