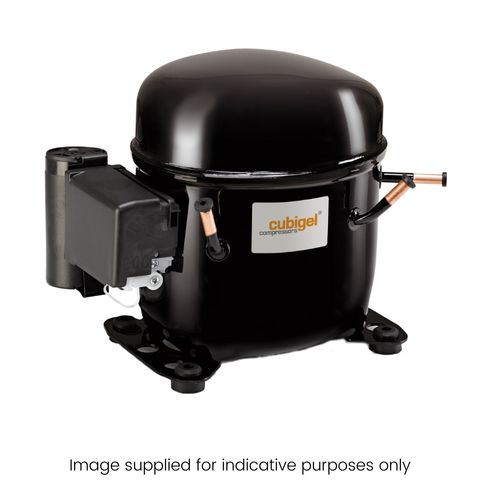

Cubigel Compressor R290 HMBP 2/3 HP 16.1cc High Efficiency - NPT16RA

Cubigel Compressor R290 HMBP 2/3 HP 16.1cc High Efficiency

Part Number: NPT16RA

Cubigel Compressor R290 HMBP 2/3 HP 16.1cc High Efficiency

Part Number: NPT16RA
Cubigel

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

  • R290 & R600a Cubigel Compressors

    Cubigel Compressors® aims to provide quality and environmentally friendly products using cutting-edge technology. For this reason the company offers the most extended range for high efficiency Green Cooling compressors for R290 & R600a which is the consequence of the development of natural refrigerants during the last 15 years.

    The increasing use of natural refrigerants in commercial applications such as propane (R290) is a priority, not only owing to the need to replace HFC refrigerants which have a high impact on the environment, but also because they are more efficient in terms of performance and energy consumption.

    From a strictly technical point of view the use of these hydrocarbon refrigerants is a great solution because of their physical and chemical properties.

    R290 is the best alternative due to the fact that R290 has no direct contribution to global warming (GWP = 3) and zero Ozone Depletion Potential (ODP = 0). For this reason it makes both HC refrigerants R290 and R600a even more attractive.

    R600a is recommended for home appliances and small business applications and is already being used to replace R134a. For its part R290 or propane is a good alternative for light commercial applications successfully replacing R134a, R404A & even R22 in certain cases.

  • General Specifications
    Nominal HP2/3 HP
    Displacement16.1 cm³
    FanFan Cooling
    Suction Line Connection8.1 mm
    Charge Line Connection8.1 mm
    Discharge Line Connection6.5 mm
    Connection TypeStub Tube
    Weight12.34 kg
    Oil Charge400 ml
    Oil TypeISO VG 32 Ester
    Electrical Specifications
    Voltage220-240 / 1 / 50 Hz
    Motor TypeCSR
    Max Continuous Current5.9 amps
    Locked Rotor Amps21 amps
    Main Winding Resistance4.5 Ω @ 25 ºC
    Start Winding Resistance5.75 Ω @ 25 ºC
  • Relay405151 or 104095
    Overload102197
    Start Capacitor102665
    Run Capacitor103220
  • cubigel_r290_r600_dd11
  • cubigel_r290_r600_wd9
  • R290
    Cond Temp (°C)Evaporating Temperature (°C)
    -15-10-5057.210
    45Capacity (w)1032122914961832223624362710
    Input (w)583611648694749776813
    Current (Amps)2.72.822.993.23.453.573.76
    50Capacity (w)986117914421774217523742645
    Input (w)614650694748811841882
    Current (Amps)2.8333.23.443.733.874.09
    55Capacity (w)941113013891717211323102580
    Input (w)644688741802872906951
    Current (Amps)2.973.173.413.694.014.174.41

    Note:

    Operating Conditions ASHRAE
    Based on +32ºC Liquid temp & +32ºC Suction gas
