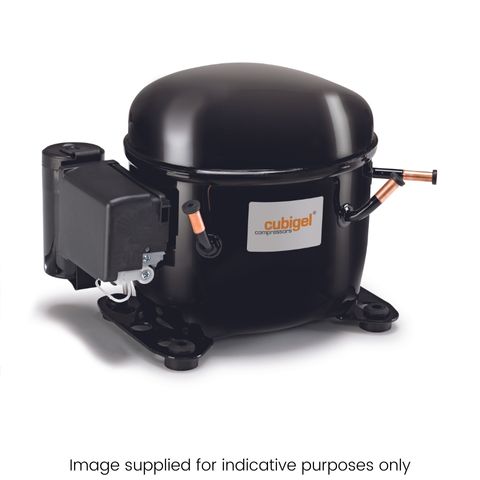

Cubigel Compressor R290 HMBP 3/8 HP 10.7cc High Efficiency - NLY12RAB

Cubigel Compressor R290 HMBP 3/8 HP 10.7cc High Efficiency

Part Number: NLY12RAB

Cubigel Compressor R290 HMBP 3/8 HP 10.7cc High Efficiency

Part Number: NLY12RAB
Cubigel

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

  • R290 & R600a Cubigel Compressors

    Cubigel Compressors® aims to provide quality and environmentally friendly products using cutting-edge technology. For this reason the company offers the most extended range for high efficiency Green Cooling compressors for R290 & R600a which is the consequence of the development of natural refrigerants during the last 15 years.

    The increasing use of natural refrigerants in commercial applications such as propane (R290) is a priority, not only owing to the need to replace HFC refrigerants which have a high impact on the environment, but also because they are more efficient in terms of performance and energy consumption.

    From a strictly technical point of view the use of these hydrocarbon refrigerants is a great solution because of their physical and chemical properties.

    R290 is the best alternative due to the fact that R290 has no direct contribution to global warming (GWP = 3) and zero Ozone Depletion Potential (ODP = 0). For this reason it makes both HC refrigerants R290 and R600a even more attractive.

    R600a is recommended for home appliances and small business applications and is already being used to replace R134a. For its part R290 or propane is a good alternative for light commercial applications successfully replacing R134a, R404A & even R22 in certain cases.

  • General Specifications
    Nominal HP3/8 HP
    Displacement10.7 cm³
    FanFan Cooling
    Suction Line Connection8.1 mm
    Charge Line Connection8.1 mm
    Discharge Line Connection6.5 mm
    Connection TypeStub Tube
    Weight11.6 kg
    Oil Charge395 ml
    Oil TypeISO VG 32 Ester
    Electrical Specifications
    Voltage220-240 / 1 / 50 Hz
    Motor TypeCSR
    Max Continuous Current5 amps
    Locked Rotor Amps18.5 amps
    Main Winding Resistance5.45 Ω @ 25 ºC
    Start Winding Resistance8.72 Ω @ 25 ºC
  • Relay405150 or 409662
    Overload102195
    Start Capacitor102665
    Run Capacitor103005
  • cubigel_r290_r600_dd9
  • cubigel_r290_r600_wd9
  • R290
    Cond Temp (°C)Evaporating Temperature (°C)
    -25-20-15-10-5057.210
    45Capacity (w)47760875993011221333156416721815
    Input (w)333365395424450475498508520
    Current (Amps)1.611.761.92.032.152.272.392.432.48
    50Capacity (w)44856870987010511251147215771714
    Input (w)341375408439468496521532545
    Current (Amps)1.641.811.962.12.232.362.492.542.6
    55Capacity (w)4185286588099801171138214801612
    Input (w)348385420454486516544556571
    Current (Amps)1.681.852.022.172.312.452.592.652.71

    Note:

    Operating Conditions ASHRAE
    Based on +32ºC Liquid temp & +32ºC Suction gas
