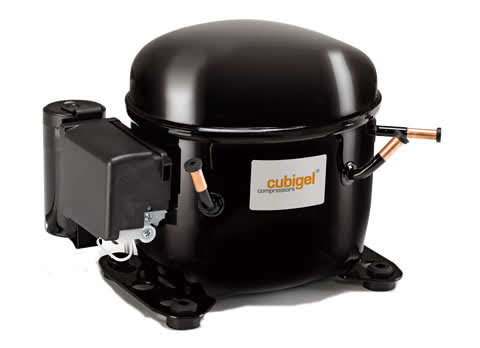

Cubigel Compressor R290 LBP 1/4 HP 6.0cc High Efficiency - NLY60LAB

Cubigel Compressor R290 LBP 1/4 HP 6.0cc High Efficiency

Part Number: NLY60LAB

Cubigel Compressor R290 LBP 1/4 HP 6.0cc High Efficiency

Part Number: NLY60LAB
Cubigel

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

  • Cubigel have produced more than 100 million compressors and have over 50 years of experience developing compressors for the commercial refrigeration market. Cubigel are focused on the development of quality compressors and condensing units which are supported by European manufacturing in Barcelona, Spain.

    With innovative research and development, Cubigel compressors are designed to optimize energy consumption in response to the issue of global warming. The high efficiency models reduce energy consumption of commercial refrigeration appliances by between 10% and 30%, with respect to standard ranges.

    Cubigel compressors range from 2.2cc up to 34cc and are available in a comprehensive range of refrigerants for today’s market. Due to this large range and a universal drop-in design, Cubigel compressors can be used as a replacement for most common compressors.

    Contact your local Airefrig Australia branch and a sales engineer will assist you with selecting a Cubigel compressor that is appropriate for your application.

  • General Specifications
    Nominal HP1/5 HP
    Displacement5.98 cm³
    FanFan Cooling
    Suction Line Connection6.5 mm
    Charge Line Connection6.5 mm
    Discharge Line Connection4.9 mm
    Connection TypeStub Tube
    Weight9.8 kg
    Oil Charge295 ml
    Oil TypeISO VG 46 Mineral
    Electrical Specifications
    Voltage220-240 / 1 / 50 Hz
    Motor TypeCSIR
    Max Continuous Current2 amps
    Locked Rotor Amps10 amps
    Main Winding Resistance12.2 Ω @ 25 ºC
    Start Winding Resistance16.8 Ω @ 25 ºC
  • Relay405957 or 104086
    Overload102166
    Start Capacitor102660
  • cubigel_r290_r600_dd6
  • cubigel_r290_r600_wd9
  • R290
    Cond Temp (°C)Evaporating Temperature (°C)
    -40-35-30-25-23.3-20-15-10
    45Capacity (w)117157208270293341424518
    Input (w)124139155172178189208227
    Current (Amps)0.790.850.910.981.011.061.141.22
    50Capacity (w)112149198257280328408500
    Input (w)125141159177183195215236
    Current (Amps)0.860.860.9311.031.081.171.26
    55Capacity (w)105141187245267314393483
    Input (w)126144162181188201222244
    Current (Amps)0.870.870.941.021.051.111.21.3

    Note:

    Operating Conditions ASHRAE
    Based on +32ºC Liquid temp & +32ºC Suction gas
