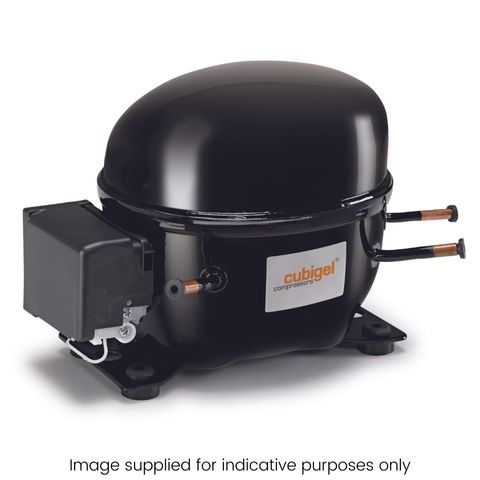

Cubigel Compressor R290 LBP 1/5 HP 4.5cc High Efficiency - NUY45LAA

Cubigel Compressor R290 LBP 1/5 HP 4.5cc High Efficiency

Part Number: NUY45LAA

Cubigel Compressor R290 LBP 1/5 HP 4.5cc High Efficiency

Part Number: NUY45LAA
Cubigel

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

  • R290 & R600a Cubigel Compressors

    Cubigel Compressors® aims to provide quality and environmentally friendly products using cutting-edge technology. For this reason the company offers the most extended range for high efficiency Green Cooling compressors for R290 & R600a which is the consequence of the development of natural refrigerants during the last 15 years.

    The increasing use of natural refrigerants in commercial applications such as propane (R290) is a priority, not only owing to the need to replace HFC refrigerants which have a high impact on the environment, but also because they are more efficient in terms of performance and energy consumption.

    From a strictly technical point of view the use of these hydrocarbon refrigerants is a great solution because of their physical and chemical properties.

    R290 is the best alternative due to the fact that R290 has no direct contribution to global warming (GWP = 3) and zero Ozone Depletion Potential (ODP = 0). For this reason it makes both HC refrigerants R290 and R600a even more attractive.

    R600a is recommended for home appliances and small business applications and is already being used to replace R134a. For its part R290 or propane is a good alternative for light commercial applications successfully replacing R134a, R404A & even R22 in certain cases.

  • General Specifications
    Nominal HP1/5 HP
    Displacement4.5 cm³
    FanFan Cooling
    Suction Line Connection6.2 mm
    Charge Line Connection6.2 mm
    Discharge Line Connection4.9 mm
    Connection TypeStub Tube
    Weight9.3 kg
    Oil Charge200 ml
    Oil TypeISO VG 22 Ester
    Electrical Specifications
    Voltage220-240 / 1 / 50 Hz
    Motor TypeCSIR
    Max Continuous Current1.2 amps
    Locked Rotor Amps7.5 amps
    Main Winding Resistance16.5 Ω @ 25 ºC
    Start Winding Resistance41.7 Ω @ 25 ºC
  • Relay405957 or 104086
    Overload102166
    Start Capacitor102660
  • cubigel_r290_r600_dd4
  • cubigel_r290_r600_wd8
  • R290
    Cond Temp (°C)Evaporating Temperature (°C)
    -40-35-30-25-23.3-20-15-10
    45Capacity (w)91123163211228264327395
    Input (w)8698110122127135147159
    Current (Amps)0.710.750.780.820.840.870.910.95
    50Capacity (w)86117157204221257319387
    Input (w)86100113127131140154168
    Current (Amps)0.710.750.790.840.850.880.930.99
    55Capacity (w)80112150197214250311379
    Input (w)86101116131136146161176
    Current (Amps)0.710.750.80.850.870.910.961.02

    Note:

    Operating Conditions ASHRAE
    Based on +32ºC Liquid temp & +32ºC Suction gas
