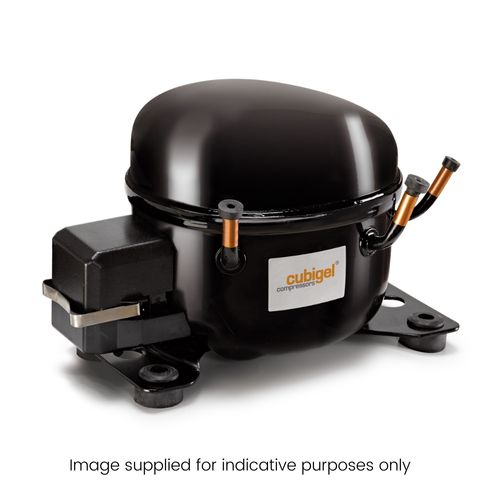

Cubigel Compressor R290 LBP 1/8 HP 3.5cc High Efficiency - NBC35NA

Cubigel Compressor R290 LBP 1/8 HP 3.5cc High Efficiency

Part Number: NBC35NA

Cubigel Compressor R290 LBP 1/8 HP 3.5cc High Efficiency

Part Number: NBC35NA
Cubigel

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

  • R290 & R600a Cubigel Compressors

    Cubigel Compressors® aims to provide quality and environmentally friendly products using cutting-edge technology. For this reason the company offers the most extended range for high efficiency Green Cooling compressors for R290 & R600a which is the consequence of the development of natural refrigerants during the last 15 years.

    The increasing use of natural refrigerants in commercial applications such as propane (R290) is a priority, not only owing to the need to replace HFC refrigerants which have a high impact on the environment, but also because they are more efficient in terms of performance and energy consumption.

    From a strictly technical point of view the use of these hydrocarbon refrigerants is a great solution because of their physical and chemical properties.

    R290 is the best alternative due to the fact that R290 has no direct contribution to global warming (GWP = 3) and zero Ozone Depletion Potential (ODP = 0). For this reason it makes both HC refrigerants R290 and R600a even more attractive.

    R600a is recommended for home appliances and small business applications and is already being used to replace R134a. For its part R290 or propane is a good alternative for light commercial applications successfully replacing R134a, R404A & even R22 in certain cases.

  • General Specifications
    Nominal HP1/8 HP
    Displacement3.5 cm³
    FanStatic Cooling
    Suction Line Connection6.1 mm
    Charge Line Connection6.1 mm
    Discharge Line Connection5.1 mm
    Connection TypeStub Tube
    Weight6.1 kg
    Oil Charge120 ml
    Oil TypeISO VG 22 Ester
    Electrical Specifications
    Voltage220-240 / 1 / 50 Hz
    Motor TypeRSIR
    Max Continuous Current1.1 amps
    Locked Rotor Amps9 amps
    Main Winding Resistance22.1 Ω @ 25 ºC
    Start Winding Resistance28.85 Ω @ 25 ºC
  • Relay104669
    Overload104663
  • cubigel_r290_r600_dd2a
  • cubigel_r290_r600_wd1
  • R290
    Cond Temp (°C)Evaporating Temperature (°C)
    -40-35-30-25-23.3-20-15-10-50
    45Capacity (w)5883113149162190237290347411
    Input (w)6373849497104114124134144
    Current (Amps)0.520.550.580.620.630.650.690.730.780.82
    50Capacity (w)5377106140152179224276333394
    Input (w)62748698102109121133144156
    Current (Amps)0.520.550.590.630.640.670.720.770.830.89
    55Capacity (w)497198130143169213263317378
    Input (w)617588101106115128142155168
    Current (Amps)0.520.560.60.640.660.690.750.810.880.95

    Note:

    Operating Conditions ASHRAE
    Based on +32ºC Liquid temp & +32ºC Suction gas
