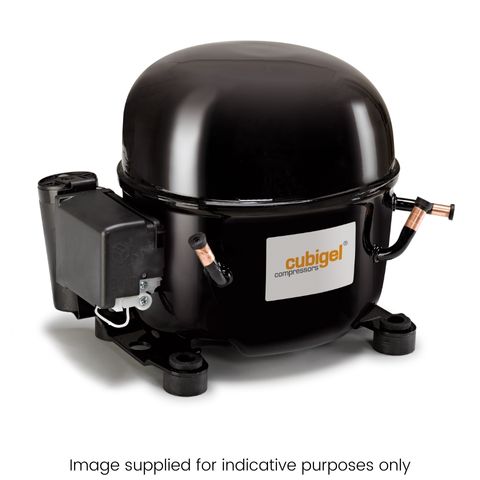

Cubigel Compressor R290 LBP 3/4 HP 20.72cc - NX21FBA

Cubigel Compressor R290 LBP 3/4 HP 20.72cc

Part Number: NX21FBA

Cubigel Compressor R290 LBP 3/4 HP 20.72cc

Part Number: NX21FBA
Cubigel

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

  • R290 & R600a Cubigel Compressors

    Cubigel Compressors® aims to provide quality and environmentally friendly products using cutting-edge technology. For this reason the company offers the most extended range for high efficiency Green Cooling compressors for R290 & R600a which is the consequence of the development of natural refrigerants during the last 15 years.

    The increasing use of natural refrigerants in commercial applications such as propane (R290) is a priority, not only owing to the need to replace HFC refrigerants which have a high impact on the environment, but also because they are more efficient in terms of performance and energy consumption.

    From a strictly technical point of view the use of these hydrocarbon refrigerants is a great solution because of their physical and chemical properties.

    R290 is the best alternative due to the fact that R290 has no direct contribution to global warming (GWP = 3) and zero Ozone Depletion Potential (ODP = 0). For this reason it makes both HC refrigerants R290 and R600a even more attractive.

    R600a is recommended for home appliances and small business applications and is already being used to replace R134a. For its part R290 or propane is a good alternative for light commercial applications successfully replacing R134a, R404A & even R22 in certain cases.

  • General Specifications
    Nominal HP3/4 HP
    Displacement20.72 cm³
    FanFan Cooling
    Suction Line Connection9.7 mm
    Charge Line Connection9.7 mm
    Discharge Line Connection6.5 mm
    Connection TypeStub Tube
    Weight16 kg
    Oil Charge650 ml
    Oil TypeISO VG 46 Ester
    Electrical Specifications
    Voltage220-240 / 1 / 50 Hz
    Motor TypeCSR
    Max Continuous Current6.5 amps
    Locked Rotor Amps24 amps
    Main Winding Resistance3.04 Ω @ 25 ºC
    Start Winding Resistance7.1 Ω @ 25 ºC
  • Relay104096
    Overload102197
    Start Capacitor103005
    Run Capacitor102654
  • cubigel_r290_r600_dd12
  • cubigel_r290_r600_wd9
  • R290
    Cond Temp (°C)Evaporating Temperature (°C)
    -40-35-30-25-23.3-20-15-10
    45Capacity (w)372521697900975112913851669
    Input (w)396451505559578614668722
    Current (Amps)2.082.332.582.832.923.083.333.58
    50Capacity (w)351495669868941109313461626
    Input (w)400461523584604645706767
    Current (Amps)2.12.382.662.943.043.223.53.78
    55Capacity (w)329471640835907105713061582
    Input (w)404472540608631676743811
    Current (Amps)2.122.432.743.053.163.373.683.99

    Note:

    Operating Conditions ASHRAE
    Based on +32ºC Liquid temp & +32ºC Suction gas
