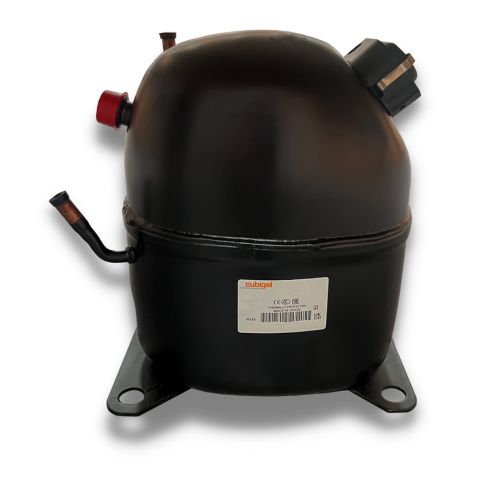

Cubigel Compressor R404A HMBP 1-5/8 HP 34.42cc Fan Cooling - MS34TB-V

Cubigel Compressor R404A HMBP 1-5/8 HP 34.42cc Fan Cooling

Part Number: MS34TB-V

Cubigel Compressor R404A HMBP 1-5/8 HP 34.42cc Fan Cooling

Part Number: MS34TB-V
Cubigel

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

  • Cubigel have produced more than 100 million compressors and have over 50 years of experience developing compressors for the commercial refrigeration market. Cubigel are focused on the development of quality compressors and condensing units which are supported by European manufacturing in Barcelona, Spain.

    With innovative research and development, Cubigel compressors are designed to optimize energy consumption in response to the issue of global warming. The high efficiency models reduce energy consumption of commercial refrigeration appliances by between 10% and 30%, with respect to standard ranges.

    Cubigel compressors range from 2.2cc up to 34cc and are available in a comprehensive range of refrigerants for today’s market. Due to this large range and a universal drop-in design, Cubigel compressors can be used as a replacement for most common compressors.

    Contact your local Airefrig Australia branch and a sales engineer will assist you with selecting a Cubigel compressor that is appropriate for your application.

  • General Specifications
    Nominal HP1-5/8 hp
    Displacement34.4 cm³
    FanFan Cooled
    Suction Line Connection5/8 SAE flare
    Charge Line Connection9.7 mm
    Discharge Line Connection8 mm
    Connection Typestub tube / rotalock
    Weight22.2 kg
    Oil Charge887 ml
    Oil TypeISO VG 46 Ester
    Electrical Specifications
    Voltage220-240 / 1 / 50 Hz
    Motor TypeCSR
    Max Continuous Current17.5 amps
    Locked Rotor Amps41 amps
    Rated Load Amps11.5 amps
    Main Winding Resistance1.38 Ω @ 25 ºC
    Start Winding Resistance4.58 Ω @ 25 ºC
  • Start Capacitor100690
    Run Capacitor102085
    Relay100478
    Overload118871
  • cubigel_d14
  • R404A
    Cond Temp (°C)Evaporating Temperature (°C)
    -15-10-50510
    45Capacity (w)267533724136496658646829
    Input (w)140015311677183920172210
    Current (Amps)7.257.828.489.2310.0811.04
    50Capacity (w)241330583769454753936305
    Input (w)144015841744191921112318
    Current (Amps)7.438.068.799.6110.5411.59
    55Capacity (w)215227443403412949225781
    Input (w)148016381811200022052425
    Current (Amps)7.68.39.11011.0212.15

    Note:

    Operating Conditions ASHRAE
    Based on +46 ºC Liquid temp & +35 ºC Suction gas
    R507
    Cond Temp (°C)Evaporating Temperature (°C)
    -15-10-50510
    45Capacity (w)267533724136496658646829
    Input (w)140015311677183920172210
    Current (Amps)7.257.828.489.2310.0811.04
    50Capacity (w)241330583769454753936305
    Input (w)144015841744191921112318
    Current (Amps)7.438.068.799.6110.5411.59
    55Capacity (w)215227443403412949225781
    Input (w)148016381811200022052425
    Current (Amps)7.68.39.11011.0212.15

    Note:

    Operating Conditions ASHRAE
    Based on +46 ºC Liquid temp & +35 ºC Suction gas
