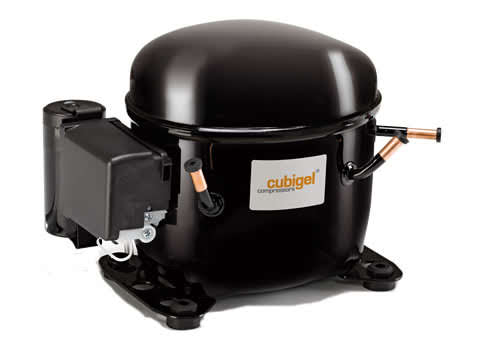

Cubigel Compressor R404A HMBP 3/8 HP 7.57cc Fan Cooling - ML80TB

Cubigel Compressor R404A HMBP 3/8 HP 7.57cc Fan Cooling

Part Number: ML80TB

Cubigel Compressor R404A HMBP 3/8 HP 7.57cc Fan Cooling

Part Number: ML80TB
Cubigel

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

  • Cubigel have produced more than 100 million compressors and have over 50 years of experience developing compressors for the commercial refrigeration market. Cubigel are focused on the development of quality compressors and condensing units which are supported by European manufacturing in Barcelona, Spain.

    With innovative research and development, Cubigel compressors are designed to optimize energy consumption in response to the issue of global warming. The high efficiency models reduce energy consumption of commercial refrigeration appliances by between 10% and 30%, with respect to standard ranges.

    Cubigel compressors range from 2.2cc up to 34cc and are available in a comprehensive range of refrigerants for today’s market. Due to this large range and a universal drop-in design, Cubigel compressors can be used as a replacement for most common compressors.

    Contact your local Airefrig Australia branch and a sales engineer will assist you with selecting a Cubigel compressor that is appropriate for your application.

  • BrandCubigel

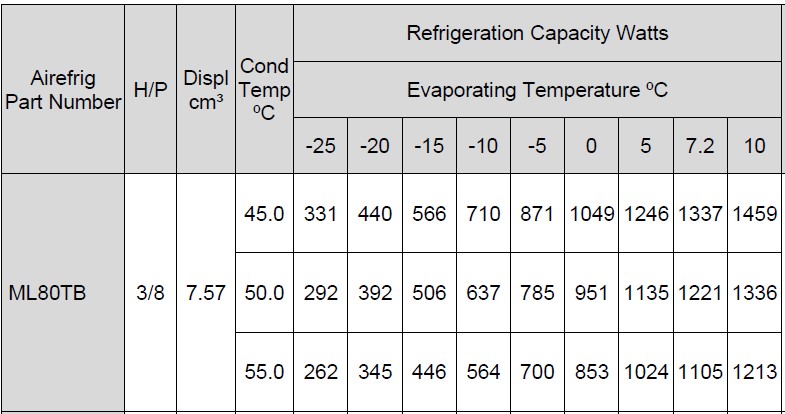

    CapacitiesSee table in resources tab
    Charge Line Connection1/4"
    Discharge Line Connection3/16"
    Displacement7.57cm³
    FanFan Cooled
    FLA Amps3.19
    Motor TypeCSIR
    Nominal HP3/8HP
    Oil Charge400ml
    Spare Part - Overload128925
    Spare Part - Start Capacitor102661
    Suction Line Connection1/4"
    Weight10kg

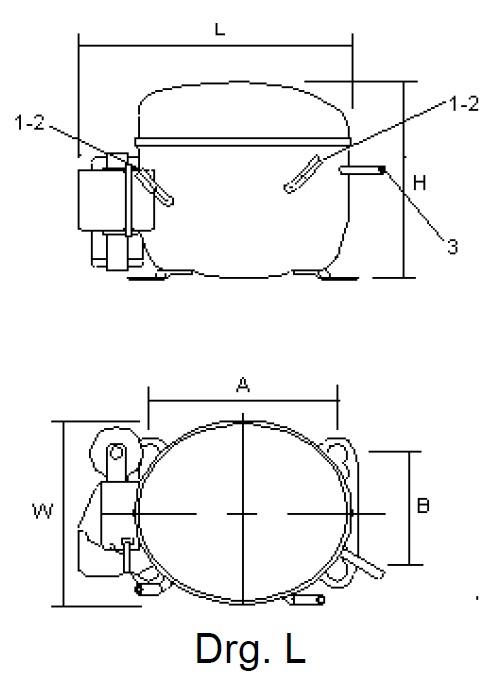

  • H: 204mm L: 240mm W: 162mm

    Cubigel Compressor R404A HMBP 3/8 HP 7.57cc Fan Cooling
  • Capacities based on ASHRAE Conditions: ambient 32 deg, sub-cooling 9 deg, superheated @ 35 deg, return vapour 35 deg
