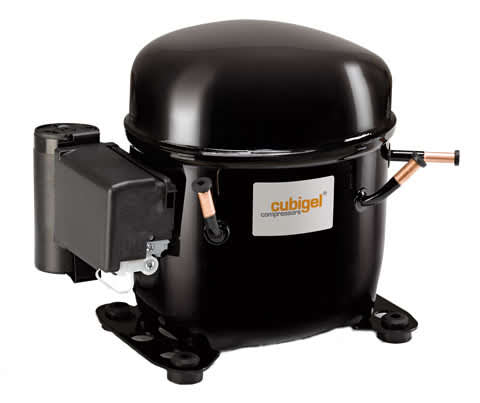

Cubigel Compressor R404A LBP 1/2 HP 14.32cc High Efficiency - MPT14LAB

Cubigel Compressor R404A LBP 1/2 HP 14.32cc High Efficiency

Part Number: MPT14LAB

Cubigel Compressor R404A LBP 1/2 HP 14.32cc High Efficiency

Part Number: MPT14LAB
Cubigel

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

  • Cubigel have produced more than 100 million compressors and have over 50 years of experience developing compressors for the commercial refrigeration market. Cubigel are focused on the development of quality compressors and condensing units which are supported by European manufacturing in Barcelona, Spain.

    With innovative research and development, Cubigel compressors are designed to optimize energy consumption in response to the issue of global warming. The high efficiency models reduce energy consumption of commercial refrigeration appliances by between 10% and 30%, with respect to standard ranges.

    Cubigel compressors range from 2.2cc up to 34cc and are available in a comprehensive range of refrigerants for today’s market. Due to this large range and a universal drop-in design, Cubigel compressors can be used as a replacement for most common compressors.

    Contact your local Airefrig Australia branch and a sales engineer will assist you with selecting a Cubigel compressor that is appropriate for your application.

  • General Specifications
    Nominal HP1/2 hp
    Displacement14.3 cm³
    FanFan Cooled
    Suction Line Connection8.1 mm
    Charge Line Connection8.1 mm
    Discharge Line Connection6.5 mm
    Connection Typestub tube
    Weight12.3 kg
    Oil Charge400 ml
    Oil TypeISO VG 32 Ester
    Electrical Specifications
    Voltage220-240 / 1 / 50 Hz
    Motor TypeCSR
    Max Continuous Current5 amps
    Locked Rotor Amps16 amps
    Rated Load Amps2.8 amps
    Main Winding Resistance5.02 Ω @ 25 ºC
    Start Winding Resistance9.67 Ω @ 25 ºC
  • Start Capacitor102661
    Run Capacitor102655
    Relay405150
    Overload102203
  • cubigel_d11
  • R404A
    Cond Temp (°C)Evaporating Temperature (°C)
    -40-35-30-25-23.3-20-15-10
    45Capacity (w)36147361177283495911711407
    Input (w)360411465521541580640703
    Current (Amps)1.882.122.362.612.72.863.123.37
    50Capacity (w)34345258774780693011391372
    Input (w)352409469531553596662732
    Current (Amps)1.842.112.382.652.752.933.213.49
    55Capacity (w)32643356472077990111071337
    Input (w)343407473541565612685760
    Current (Amps)1.82.12.42.72.833.33.6

    Note:

    Operating Conditions ASHRAE
    Based on +32 ºC Liquid temp & +32 ºC Suction gas
    R507
    Cond Temp (°C)Evaporating Temperature (°C)
    -40-35-30-25-23.3-20-15-10
    45Capacity (w)36147361177283495911711407
    Input (w)360411465521541580640703
    Current (Amps)1.882.122.362.612.72.863.123.37
    50Capacity (w)34345258774780693011391372
    Input (w)352409469531553596662732
    Current (Amps)1.842.112.382.652.752.933.213.49
    55Capacity (w)32643356472077990111071337
    Input (w)343407473541565612685760
    Current (Amps)1.82.12.42.72.833.33.6

    Note:

    Operating Conditions ASHRAE
    Based on +32 ºC Liquid temp & +32 ºC Suction gas
