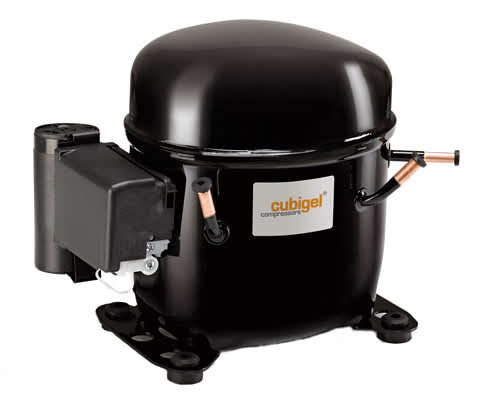

Cubigel Compressor R404A LBP 1/2 HP 16.15cc High Efficiency - MPT16LA

Cubigel Compressor R404A LBP 1/2 HP 16.15cc High Efficiency

Part Number: MPT16LA

Cubigel Compressor R404A LBP 1/2 HP 16.15cc High Efficiency

Part Number: MPT16LA
Cubigel

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

  • Cubigel have produced more than 100 million compressors and have over 50 years of experience developing compressors for the commercial refrigeration market. Cubigel are focused on the development of quality compressors and condensing units which are supported by European manufacturing in Barcelona, Spain.

    With innovative research and development, Cubigel compressors are designed to optimize energy consumption in response to the issue of global warming. The high efficiency models reduce energy consumption of commercial refrigeration appliances by between 10% and 30%, with respect to standard ranges.

    Cubigel compressors range from 2.2cc up to 34cc and are available in a comprehensive range of refrigerants for today’s market. Due to this large range and a universal drop-in design, Cubigel compressors can be used as a replacement for most common compressors.

    Contact your local Airefrig Australia branch and a sales engineer will assist you with selecting a Cubigel compressor that is appropriate for your application.

  • General Specifications
    Nominal HP1/2 hp
    Displacement16.1 cm³
    FanFan Cooled
    Suction Line Connection8.1 mm
    Charge Line Connection8.1 mm
    Discharge Line Connection6.5 mm
    Connection Typestub tube
    Weight12.4 kg
    Oil Charge450 ml
    Oil TypeISO VG 32 Ester
    Electrical Specifications
    Voltage220-240 / 1 / 50 Hz
    Motor TypeCSR
    Max Continuous Current4 amps
    Locked Rotor Amps19 amps
    Rated Load Amps3.04 amps
    Main Winding Resistance5.3 Ω @ 25 ºC
    Start Winding Resistance8.7 Ω @ 25 ºC
  • Start Capacitor102665
    Run Capacitor102654
    Relay405150
    Overload102205
  • cubigel_d11
  • R404A
    Cond Temp (°C)Evaporating Temperature (°C)
    -40-35-30-25-23.3-20-15-10
    45Capacity (w)371507675875949110513671661
    Input (w)394448508573597645722805
    Current (Amps)1.982.212.472.762.873.083.443.83
    50Capacity (w)350484649846920107313331625
    Input (w)395454519590616667750839
    Current (Amps)1.992.242.522.842.953.193.573.99
    55Capacity (w)329461622816890104212991587
    Input (w)396461531608635690778872
    Current (Amps)1.992.272.582.923.043.293.74.15

    Note:

    Operating Conditions ASHRAE
    Based on +32 ºC Liquid temp & +32 ºC Suction gas
    R507
    Cond Temp (°C)Evaporating Temperature (°C)
    -40-35-30-25-23.3-20-15-10
    45Capacity (w)371507675875949110513671661
    Input (w)394448508573597645722805
    Current (Amps)1.982.212.472.762.873.083.443.83
    50Capacity (w)350484649846920107313331625
    Input (w)395454519590616667750839
    Current (Amps)1.992.242.522.842.953.193.573.99
    55Capacity (w)329461622816890104212991587
    Input (w)396461531608635690778872
    Current (Amps)1.992.272.582.923.043.293.74.15

    Note:

    Operating Conditions ASHRAE
    Based on +32 ºC Liquid temp & +32 ºC Suction gas
