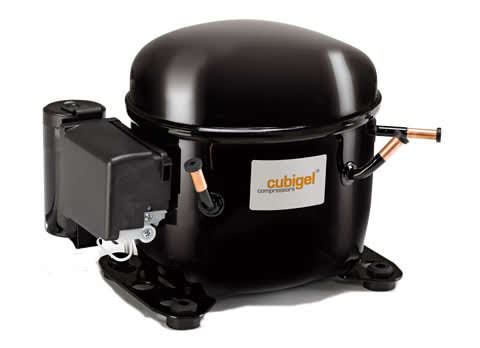

Cubigel Compressor R404A LBP 1/3 HP 9.09cc High Efficiency - MLY90LAB

Cubigel Compressor R404A LBP 1/3 HP 9.09cc High Efficiency

Part Number: MLY90LAB

Cubigel Compressor R404A LBP 1/3 HP 9.09cc High Efficiency

Part Number: MLY90LAB
Cubigel

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

  • Cubigel have produced more than 100 million compressors and have over 50 years of experience developing compressors for the commercial refrigeration market. Cubigel are focused on the development of quality compressors and condensing units which are supported by European manufacturing in Barcelona, Spain.

    With innovative research and development, Cubigel compressors are designed to optimize energy consumption in response to the issue of global warming. The high efficiency models reduce energy consumption of commercial refrigeration appliances by between 10% and 30%, with respect to standard ranges.

    Cubigel compressors range from 2.2cc up to 34cc and are available in a comprehensive range of refrigerants for today’s market. Due to this large range and a universal drop-in design, Cubigel compressors can be used as a replacement for most common compressors.

    Contact your local Airefrig Australia branch and a sales engineer will assist you with selecting a Cubigel compressor that is appropriate for your application.

  • General Specifications
    Nominal HP1-Mar hp
    Displacement9.09 cm³
    FanFan Cooled
    Suction Line Connection6.5 mm
    Charge Line Connection6.5 mm
    Discharge Line Connection4.9 mm
    Connection Typestub tube
    Weight40.5 kg
    Oil Charge400 ml
    Oil TypeISO VG 32 Ester
    Electrical Specifications
    Voltage220-240 / 1 / 50 Hz
    Motor TypeCSR
    Max Continuous Current302 amps
    Locked Rotor Amps11.5 amps
    Rated Load Amps1.75 amps
    Main Winding Resistance7.26 Ω @ 25 ºC
    Start Winding Resistance10.48 Ω @ 25 ºC
  • Start Capacitor102664
    Run Capacitor102655
    Relay405148
    Overload102199
  • cubigel_d9
  • R404A
    Cond Temp (°C)Evaporating Temperature (°C)
    -40-35-30-25-23.3-20-15-10
    45Capacity (w)186264358470512599744907
    Input (w)207240275313326352394438
    Current (Amps)1.231.361.511.661.721.832.022.21
    50Capacity (w)174248338445486570711870
    Input (w)2032382763163291.85401448
    Current (Amps)1.221.361.511.681.731.592.052.26
    55Capacity (w)163231317421459541678832
    Input (w)199237276318333362409457
    Current (Amps)1.21.351.511.691.751.882.082.3

    Note:

    Operating Conditions ASHRAE
    Based on +32 ºC Liquid temp & +32 ºC Suction gas
    R507
    Cond Temp (°C)Evaporating Temperature (°C)
    -40-35-30-25-23.3-20-15-10
    45Capacity (w)186264358470512599744907
    Input (w)207240275313326352394438
    Current (Amps)1.231.361.511.661.721.832.022.21
    50Capacity (w)174248338445486570711870
    Input (w)2032382763163291.85401448
    Current (Amps)1.221.361.511.681.731.592.052.26
    55Capacity (w)163231317421459541678832
    Input (w)199237276318333362409457
    Current (Amps)1.21.351.511.691.751.882.082.3

    Note:

    Operating Conditions ASHRAE
    Based on +32 ºC Liquid temp & +32 ºC Suction gas
