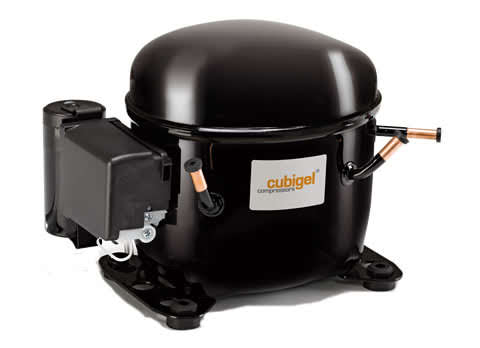

Cubigel Compressor R404A LBP 1/5 HP 5.98cc High Efficiency - MLY60LAB

Cubigel Compressor R404A LBP 1/5 HP 5.98cc High Efficiency

Part Number: MLY60LAB

Cubigel Compressor R404A LBP 1/5 HP 5.98cc High Efficiency

Part Number: MLY60LAB
Cubigel

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

  • Cubigel have produced more than 100 million compressors and have over 50 years of experience developing compressors for the commercial refrigeration market. Cubigel are focused on the development of quality compressors and condensing units which are supported by European manufacturing in Barcelona, Spain.

    With innovative research and development, Cubigel compressors are designed to optimize energy consumption in response to the issue of global warming. The high efficiency models reduce energy consumption of commercial refrigeration appliances by between 10% and 30%, with respect to standard ranges.

    Cubigel compressors range from 2.2cc up to 34cc and are available in a comprehensive range of refrigerants for today’s market. Due to this large range and a universal drop-in design, Cubigel compressors can be used as a replacement for most common compressors.

    Contact your local Airefrig Australia branch and a sales engineer will assist you with selecting a Cubigel compressor that is appropriate for your application.

  • General Specifications
    Nominal HP1/5 hp
    Displacement5.98 cm³
    FanFan Cooled
    Suction Line Connection5.6 mm
    Charge Line Connection6.5 mm
    Discharge Line Connection4.9 mm
    Connection Typestub tube
    Weight10.2 kg
    Oil Charge350 ml
    Oil TypeISO VG 32 Ester
    Electrical Specifications
    Voltage220-240 / 1 / 50 Hz
    Motor TypeCSR
    Max Continuous Current2.55 amps
    Locked Rotor Amps10 amps
    Rated Load Amps1.23 amps
    Main Winding Resistance7.6 Ω @ 25 ºC
    Start Winding Resistance12.04 Ω @ 25 ºC
  • Relay405146
    Start Capacitor102660
    Run Capacitor102254
    Overload102206
  • cubigel_d8
  • R404A
    Cond Temp (°C)Evaporating Temperature (°C)
    -40-35-30-25-23.3-20-15-10
    45Capacity (w)140194259336365424523634
    Input (w)152175200225234251278306
    Current (Amps)0.880.971.061.171.21.281.41.52
    50Capacity (w)128180243317345404500608
    Input (w)149174200227237255285315
    Current (Amps)0.860.961.061.181.221.31.421.56
    55Capacity (w)116166227299326381476582
    Input (w)145172201230240260291323
    Current (Amps)0.850.951.071.191.231.321.451.6

    Note:

    Operating Conditions ASHRAE
    Based on +32 ºC Liquid temp & +32 ºC Suction gas
    R507
    Cond Temp (°C)Evaporating Temperature (°C)
    -40-35-30-25-23.3-20-15-10
    45Capacity (w)140194259336365424523634
    Input (w)152175200225234251278306
    Current (Amps)0.880.971.061.171.21.281.41.52
    50Capacity (w)128180243317345404500608
    Input (w)149174200227237255285315
    Current (Amps)0.860.961.061.181.221.31.421.56
    55Capacity (w)116166227299326381476582
    Input (w)145172201230240260291323
    Current (Amps)0.850.951.071.191.231.321.451.6

    Note:

    Operating Conditions ASHRAE
    Based on +32 ºC Liquid temp & +32 ºC Suction gas
