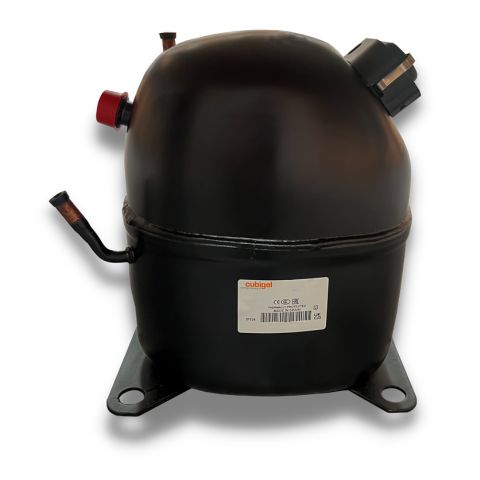

Cubigel Compressor R404A LBP 1 HP 34.42cc Fan Cooling - MS34FB-V

Cubigel Compressor R404A LBP 1 HP 34.42cc Fan Cooling

Part Number: MS34FB-V

Cubigel Compressor R404A LBP 1 HP 34.42cc Fan Cooling

Part Number: MS34FB-V
Cubigel

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

  • Cubigel have produced more than 100 million compressors and have over 50 years of experience developing compressors for the commercial refrigeration market. Cubigel are focused on the development of quality compressors and condensing units which are supported by European manufacturing in Barcelona, Spain.

    With innovative research and development, Cubigel compressors are designed to optimize energy consumption in response to the issue of global warming. The high efficiency models reduce energy consumption of commercial refrigeration appliances by between 10% and 30%, with respect to standard ranges.

    Cubigel compressors range from 2.2cc up to 34cc and are available in a comprehensive range of refrigerants for today’s market. Due to this large range and a universal drop-in design, Cubigel compressors can be used as a replacement for most common compressors.

    Contact your local Airefrig Australia branch and a sales engineer will assist you with selecting a Cubigel compressor that is appropriate for your application.

  • General Specifications
    Nominal HP1 hp
    Displacement34.42 cm³
    FanFan Cooled
    Suction Line Connection5/8 SAE flare
    Charge Line Connection9.7 mm
    Discharge Line Connection8 mm
    Connection Typestub tube / rotalock
    Weight22.1 kg
    Oil Charge887 ml
    Oil TypeISO VG 46 Ester
    Electrical Specifications
    Voltage220-240 / 1 / 50 Hz
    Motor TypeCSR
    Max Continuous Current9 amps
    Locked Rotor Amps39 amps
    Rated Load Amps6.39 amps
    Main Winding Resistance2.13 Ω @ 25 ºC
    Start Winding Resistance7.4 Ω @ 25 ºC
  • Start Capacitor100690
    Run Capacitor102084
    Relay100480
    Overload101097
  • cubigel_d14
  • R404A
    Cond Temp (°C)Evaporating Temperature (°C)
    -40-35-30-25-23.3-20-15-10
    45Capacity (w)512857126317291902225528423489
    Input (w)65580195511161173128514611645
    Current (Amps)4.24.765.376.026.266.737.58.34
    50Capacity (w)419750114315961763210926813315
    Input (w)62878795311271188130914981695
    Current (Amps)4.14.75.366.076.326.847.678.57
    55Capacity (w)326644102214621625196125203140
    Input (w)60077295211391204133315351745
    Current (Amps)44.655.356.126.396.947.848.8

    Note:

    Operating Conditions ASHRAE
    Based on +32 ºC Liquid temp & +32 ºC Suction gas
    R507
    Cond Temp (°C)Evaporating Temperature (°C)
    -40-35-30-25-23.3-20-15-10
    45Capacity (w)512857126317291902225528423489
    Input (w)65580195511161173128514611645
    Current (Amps)4.24.765.376.026.266.737.58.34
    50Capacity (w)419750114315961763210926813315
    Input (w)62878795311271188130914981695
    Current (Amps)4.14.75.366.076.326.847.678.57
    55Capacity (w)326644102214621625196125203140
    Input (w)60077295211391204133315351745
    Current (Amps)44.655.356.126.396.947.848.8

    Note:

    Operating Conditions ASHRAE
    Based on +32 ºC Liquid temp & +32 ºC Suction gas
