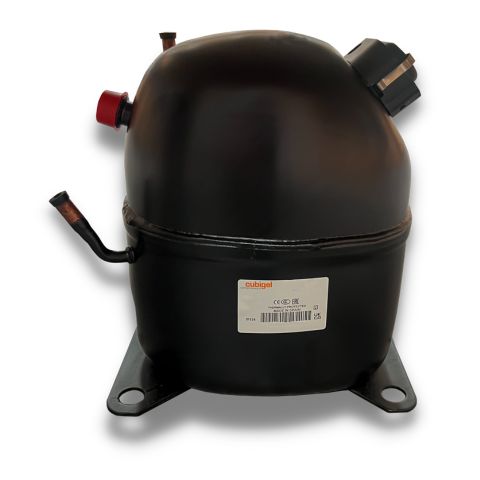

Cubigel Compressor R404A LBP 3/4 HP 25.93cc Fan Cooling - MS26FB-V

Cubigel Compressor R404A LBP 3/4 HP 25.93cc Fan Cooling

Part Number: MS26FB-V

Cubigel Compressor R404A LBP 3/4 HP 25.93cc Fan Cooling

Part Number: MS26FB-V
Cubigel

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

  • Cubigel have produced more than 100 million compressors and have over 50 years of experience developing compressors for the commercial refrigeration market. Cubigel are focused on the development of quality compressors and condensing units which are supported by European manufacturing in Barcelona, Spain.

    With innovative research and development, Cubigel compressors are designed to optimize energy consumption in response to the issue of global warming. The high efficiency models reduce energy consumption of commercial refrigeration appliances by between 10% and 30%, with respect to standard ranges.

    Cubigel compressors range from 2.2cc up to 34cc and are available in a comprehensive range of refrigerants for today’s market. Due to this large range and a universal drop-in design, Cubigel compressors can be used as a replacement for most common compressors.

    Contact your local Airefrig Australia branch and a sales engineer will assist you with selecting a Cubigel compressor that is appropriate for your application.

  • General Specifications
    Nominal HP3/4 hp
    Displacement25.9 cm³
    FanFan Cooled
    Suction Line Connection1/2 SAE flare
    Charge Line Connection9.6 mm
    Discharge Line Connection8 mm
    Connection Typestub tube / rotalock
    Weight21.6 kg
    Oil Charge887 ml
    Oil TypeISO VG 46 Ester
    Electrical Specifications
    Voltage220-240 / 1 / 50 Hz
    Motor TypeCSR
    Max Continuous Current7.3 amps
    Locked Rotor Amps31.5 amps
    Rated Load Amps4.5 amps
    Main Winding Resistance2.63 Ω @ 25 ºC
    Start Winding Resistance6.19 Ω @ 25 ºC
  • Start Capacitor100690
    Run Capacitor102083
    Relay100480
    Overload101405
  • cubigel_d14
  • R404A
    Cond Temp (°C)Evaporating Temperature (°C)
    -40-35-30-25-23.3-20-15-10
    45Capacity (w)39566197013261456172621722663
    Input (w)44057170082887295510811205
    Current (Amps)2.653.163.684.234.424.795.385.98
    50Capacity (w)32057286912121339160020332512
    Input (w)42055969883588197011041238
    Current (Amps)2.573.113.674.264.464.865.496.14
    55Capacity (w)24448476910991221147418952361
    Input (w)40054869584189098511281270
    Current (Amps)2.53.073.664.284.54.935.66.3

    Note:

    Operating Conditions ASHRAE
    Based on +32 ºC Liquid temp & +32 ºC Suction gas
    R507
    Cond Temp (°C)Evaporating Temperature (°C)
    -40-35-30-25-23.3-20-15-10
    45Capacity (w)39566197013261456172621722663
    Input (w)44057170082887295510811205
    Current (Amps)2.653.163.684.234.424.795.385.98
    50Capacity (w)32057286912121339160020332512
    Input (w)42055969883588197011041238
    Current (Amps)2.573.113.674.264.464.865.496.14
    55Capacity (w)24448476910991221147418952361
    Input (w)40054869584189098511281270
    Current (Amps)2.53.073.664.284.54.935.66.3

    Note:

    Operating Conditions ASHRAE
    Based on +32 ºC Liquid temp & +32 ºC Suction gas
