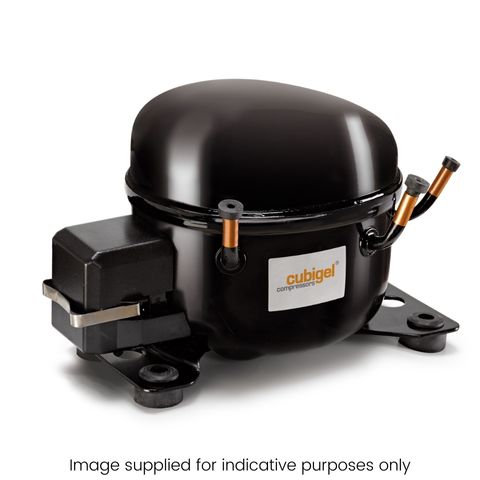

Cubigel Compressor R600a LBP 1/10 HP 5.2cc High Efficiency - B52CL

Cubigel Compressor R600a LBP 1/10 HP 5.2cc High Efficiency

Part Number: B52CL

Cubigel Compressor R600a LBP 1/10 HP 5.2cc High Efficiency

Part Number: B52CL
Cubigel

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

  • R290 & R600a Cubigel Compressors

    Cubigel Compressors® aims to provide quality and environmentally friendly products using cutting-edge technology. For this reason the company offers the most extended range for high efficiency Green Cooling compressors for R290 & R600a which is the consequence of the development of natural refrigerants during the last 15 years.

    The increasing use of natural refrigerants in commercial applications such as propane (R290) is a priority, not only owing to the need to replace HFC refrigerants which have a high impact on the environment, but also because they are more efficient in terms of performance and energy consumption.

    From a strictly technical point of view the use of these hydrocarbon refrigerants is a great solution because of their physical and chemical properties.

    R290 is the best alternative due to the fact that R290 has no direct contribution to global warming (GWP = 3) and zero Ozone Depletion Potential (ODP = 0). For this reason it makes both HC refrigerants R290 and R600a even more attractive.

    R600a is recommended for home appliances and small business applications and is already being used to replace R134a. For its part R290 or propane is a good alternative for light commercial applications successfully replacing R134a, R404A & even R22 in certain cases.

  • General Specifications
    Nominal HP1/10 HP
    Displacement5.2 cm³
    FanStatic Cooling
    Suction Line Connection6.1 mm
    Charge Line Connection6.1 mm
    Discharge Line Connection5.1 mm
    Connection TypeStub Tube
    Weight4.6 kg
    Oil Charge120 ml
    Oil TypeISO VG 10 Mineral
    Electrical Specifications
    Voltage220-240 / 1 / 50 Hz
    Motor TypeRSIR
    Max Continuous Current0.94 amps
    Locked Rotor Amps3.6 amps
    Main Winding Resistance32.04 Ω @ 25 ºC
    Start Winding Resistance15.1 Ω @ 25 ºC
  • Relay104854 or 103822
    Overload104633
  • cubigel_r290_r600_dd2
  • cubigel_r290_r600_wd2
  • R600a
    Cond Temp (°C)Evaporating Temperature (°C)
    -35-30-25-23.3-20-15-10
    45Capacity (w)48628088104133165
    Input (w)50576467738292
    Current (Amps)0.610.660.710.730.770.830.9
    50Capacity (w)44587784100128159
    Input (w)50576568748494
    Current (Amps)0.610.660.710.730.770.840.92
    55Capacity (w)4255738095123155
    Input (w)50586669758596
    Current (Amps)0.610.660.720.740.780.850.93

    Note:

    Operating Conditions ASHRAE
    Based on +32ºC Liquid temp & +32ºC Suction gas
