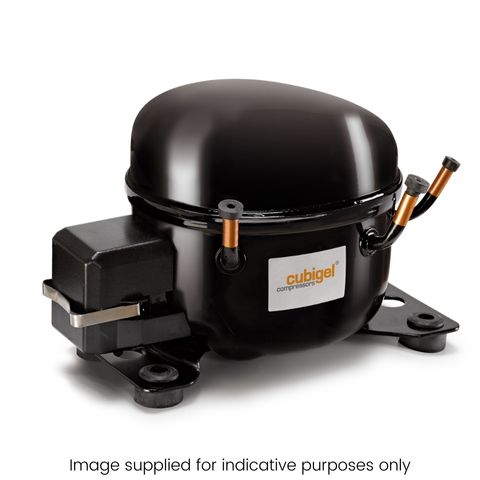

Cubigel Compressor R600a LBP 1/12 HP 4.3cc High Effeciency - B43CB

Cubigel Compressor R600a LBP 1/12 HP 4.3cc High Effeciency

Part Number: B43CB

Cubigel Compressor R600a LBP 1/12 HP 4.3cc High Effeciency

Part Number: B43CB
Cubigel

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

  • R290 & R600a Cubigel Compressors

    Cubigel Compressors® aims to provide quality and environmentally friendly products using cutting-edge technology. For this reason the company offers the most extended range for high efficiency Green Cooling compressors for R290 & R600a which is the consequence of the development of natural refrigerants during the last 15 years.

    The increasing use of natural refrigerants in commercial applications such as propane (R290) is a priority, not only owing to the need to replace HFC refrigerants which have a high impact on the environment, but also because they are more efficient in terms of performance and energy consumption.

    From a strictly technical point of view the use of these hydrocarbon refrigerants is a great solution because of their physical and chemical properties.

    R290 is the best alternative due to the fact that R290 has no direct contribution to global warming (GWP = 3) and zero Ozone Depletion Potential (ODP = 0). For this reason it makes both HC refrigerants R290 and R600a even more attractive.

    R600a is recommended for home appliances and small business applications and is already being used to replace R134a. For its part R290 or propane is a good alternative for light commercial applications successfully replacing R134a, R404A & even R22 in certain cases.

  • General Specifications
    Nominal HP1/12 HP
    Displacement4.3 cm³
    FanStatic Cooling
    Suction Line Connection6.1 mm
    Charge Line Connection6.1 mm
    Discharge Line Connection5.1 mm
    Connection TypeStub Tube
    Weight4.6 kg
    Oil Charge120 ml
    Oil TypeISO VG 10 Mineral
    Electrical Specifications
    Voltage220-240 / 1 / 50 Hz
    Motor TypeRSIR
    Max Continuous Current0.55 amps
    Locked Rotor Amps2.23 amps
    Main Winding Resistance54.2 Ω @ 25 ºC
    Start Winding Resistance21.6 Ω @ 25 ºC
  • Relay104854 or 103821
    Overload103830
  • cubigel_r290_r600_dd2
  • cubigel_r290_r600_wd2
  • R600a
    Cond Temp (°C)Evaporating Temperature (°C)
    -35-30-25-23.3-20-15-10
    45Capacity (w)4153707690113141
    Input (w)43495558637079
    Current (Amps)0.390.420.450.460.490.530.58
    50Capacity (w)3750667286109136
    Input (w)42495658637280
    Current (Amps)0.390.420.450.470.490.540.59
    55Capacity (w)3547636981105131
    Input (w)42495659647382
    Current (Amps)0.390.420.460.470.50.550.6

    Note:

    Operating Conditions ASHRAE
    Based on +32ºC Liquid temp & +32ºC Suction gas
