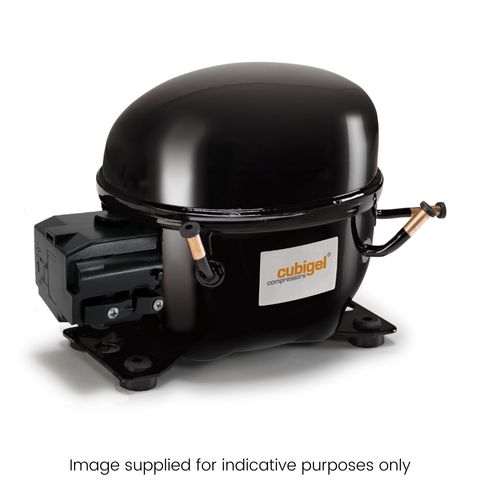

Cubigel Compressor R600a LBP 1/7 HP 8.1cc High Efficiency - HYE81MGUA

Cubigel Compressor R600a LBP 1/7 HP 8.1cc High Efficiency

Part Number: HYE81MGUA

Cubigel Compressor R600a LBP 1/7 HP 8.1cc High Efficiency

Part Number: HYE81MGUA
Cubigel

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

  • R290 & R600a Cubigel Compressors

    Cubigel Compressors® aims to provide quality and environmentally friendly products using cutting-edge technology. For this reason the company offers the most extended range for high efficiency Green Cooling compressors for R290 & R600a which is the consequence of the development of natural refrigerants during the last 15 years.

    The increasing use of natural refrigerants in commercial applications such as propane (R290) is a priority, not only owing to the need to replace HFC refrigerants which have a high impact on the environment, but also because they are more efficient in terms of performance and energy consumption.

    From a strictly technical point of view the use of these hydrocarbon refrigerants is a great solution because of their physical and chemical properties.

    R290 is the best alternative due to the fact that R290 has no direct contribution to global warming (GWP = 3) and zero Ozone Depletion Potential (ODP = 0). For this reason it makes both HC refrigerants R290 and R600a even more attractive.

    R600a is recommended for home appliances and small business applications and is already being used to replace R134a. For its part R290 or propane is a good alternative for light commercial applications successfully replacing R134a, R404A & even R22 in certain cases.

  • General Specifications
    Nominal HP1/7 HP
    Displacement8.1 cm³
    FanStatic Cooling
    Suction Line Connection6.1 mm
    Charge Line Connection6.1 mm
    Discharge Line Connection4.9 mm
    Connection TypeStub Tube
    Weight8.4 kg
    Oil Charge180 ml
    Oil TypeISO VG 10 Mineral
    Electrical Specifications
    Voltage220-240 / 1 / 50 Hz
    Motor TypeRSCR
    Max Continuous Current0.67 amps
    Locked Rotor Amps4.2 amps
    Main Winding Resistance30.9 Ω @ 25 ºC
    Start Winding Resistance17.5 Ω @ 25 ºC
  • Relay & Overload Combination105765
    Run Capacitor105642
  • cubigel_r290_r600_dd8
  • cubigel_r290_r600_wd5
  • R600a
    Cond Temp (°C)Evaporating Temperature (°C)
    -35-30-25-23.3-20-15-10
    45Capacity (w)84107140151179227281
    Input (w)6777889199111124
    Current (Amps)0.450.470.490.50.520.550.58
    50Capacity (w)79102134145172219274
    Input (w)66768892100113126
    Current (Amps)0.440.460.490.50.520.550.59
    55Capacity (w)7497128140166212266
    Input (w)64758892101114129
    Current (Amps)0.440.460.490.50.520.560.6

    Note:

    Operating Conditions ASHRAE
    Based on +32ºC Liquid temp & +32ºC Suction gas
