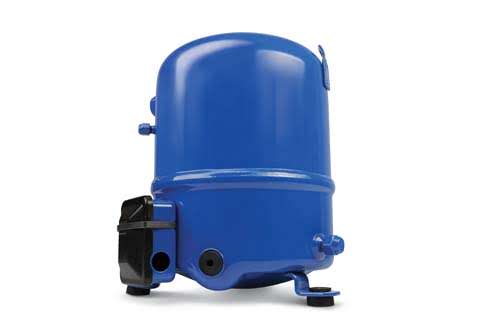

Maneurop Compressor 1PH Multi Refrigerant POE Oil Rotalock - MTZ325VI

Maneurop Compressor 1PH Multi Refrigerant POE Oil Rotalock

Part Number: MTZ325VI

Maneurop Compressor 1PH Multi Refrigerant POE Oil Rotalock

Part Number: MTZ325VI
Danfoss

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

  • Maneurop reciprocating compressors from Danfoss Commercial Compressors are specially designed for applications with a wide range of operating conditions. All components are of high quality and precision in order to assure a long product life. Maneurop MTZ series compressors are of the hermetic reciprocating type and are designed for medium and high evaporating temperature applications.

    MTZ compressors can be used in new installations and also to replace Maneurop MT/MTE compressors in existing installations. The old MT series compressors were charged with mineral oil and could only be used with R22, while the new replacement MTZ series compressors are charged with polyolester oil and can be used with multiple refrigerants - R134a, R404A, R407A, R407C, R407F, R448A, R449A, R452A, R507A, R513A.

    MTZ compressors have a large internal free volume that protects against the risk of liquid hammering when liquid refrigerant enters the compressor. The positive benefits of internal motor protection, high efficiency circular valve design and high torque motors provide for a quality installation.

    MTZ compressors are fully suction gas cooled. This means that no additional compressor cooling is required and allows the compressors to be insulated with acoustic jackets, to obtain lower sound levels, without the risk of compressor overheating. All compressors are available in VE version (oil equalisation + oil sight glass).

    Note: Rotalock service valves & crankcase heaters are not supplied with compressor & should be purchased separately if required.



  • General Specifications
    Nominal HP2.5 HP
    Displacement54.86 cm³/r
    Number of Cylinders1
    Suction Line Connection 11-1/4"-12UNF x 5/8" ODF
    Discharge Line Connection 11"-14UNF x 1/2" ODF
    Weight24 kg
    Oil Charge0.95 L
    Oil TypePOE

    1. Service valves are not supplied with compressors & should be purchased separately if required

    Electrical Specifications
    Voltage230V / 1 / 50Hz
    Motor Type 2CSR
    Max Continuous Current20 amps
    Locked Rotor Amps70 amps
    Crankcase Heater 3PTC Internal heater 200-600 volts 35 watts
    Main Winding Resistance0.9 OHMS (+/- 7% @ 20^C)
    Start Winding Resistance4.3 OHMS (+/- 7% @ 20^C)

    2. Electrics for CSR supplied loose

    3. Crankcase Heaters are not supplied with compressors & should be purchased separately if required

  • Crankcase Heater120Z0459
    Discharge Service Gasket0200028005PK
    Discharge Service ValveR051FA8DS
    Model NumberMTZ325VI
    Suction Service Gasket0200028025PK
    Suction Service ValveR052FB2DS
  • danfoss_manuerope_mtz_1
  • danfoss_manuerope_mtz_elec_CSR
  • R404A
    Cond Temp (°C)Evaporating Temperature (°C)
    -20-15-10-50510
    45Capacity (w)2677351644825582682282089739
    Input (w)1698193321532356254227082854
    Current (Amps)10.121111.8612.6713.3913.9814.39
    50Capacity (w)308039554952607673308715
    Input (w)198022292464268228823063
    Current (Amps)11.213.1213.1214.0214.7715.35
    55Capacity (w)263934174303530364197649
    Input (w)200022812549280230383256
    Current (Amps)11.2512.4213.5514.6215.5716.37

    Note:

    20°C Return Gas, no Sub-Cooling
    R507
    Cond Temp (°C)Evaporating Temperature (°C)
    -20-15-10-50510
    45Capacity (w)2677351644825582682282089739
    Input (w)1698193321532356254227082854
    Current (Amps)10.121111.8612.6713.3913.9814.39
    50Capacity (w)308039554952607673308715
    Input (w)198022292464268228823063
    Current (Amps)11.213.1213.1214.0214.7715.35
    55Capacity (w)263934174303530364197649
    Input (w)200022812549280230383256
    Current (Amps)11.2512.4213.5514.6215.5716.37

    Note:

    20°C Return Gas, no Sub-Cooling
    R134A
    Cond Temp (°C)Evaporating Temperature (°C)
    -15-10-5051015
    45Capacity (w)1571218229283827489461447590
    Input (w)1088124814001540166117581825
    Current (Amps)8.99.39.71010.410.610.8
    50Capacity (w)1408196726543483447156316976
    Input (w)1102127414421599174018591951
    Current (Amps)8.959.3910.2310.2310.6110.9511.24
    55Capacity (w)1264176723873141404451096347
    Input (w)1105129214761652181519582077
    Current (Amps)99.49.910.410.911.311.6

    Note:

    20°C Return Gas, no Sub-Cooling
    R22
    Cond Temp (°C)Evaporating Temperature (°C)
    -10-5057.21015
    45Capacity (w)41145229649879348644954811351
    Input (w)2109230224692602264226932735
    Current (Amps)10.4211.1311.7812.3312.512.7212.92
    50Capacity (w)4818602273848058891510626
    Input (w)240225992765282128922973
    Current (Amps)11.512.9712.9713.2113.5213.9
    55Capacity (w)442055466821745282559859
    Input (w)249327222925299830923217
    Current (Amps)11.8912.8213.6713.9914.414.98

    Note:

    20°C Return Gas, no Sub-Cooling
