Maneurop Compressor 3PH Multi Refrigerant POE Oil Rotalock - MTZ804VI

Maneurop Compressor 3PH Multi Refrigerant POE Oil Rotalock

Part Number: MTZ804VI

Maneurop Compressor 3PH Multi Refrigerant POE Oil Rotalock

Part Number: MTZ804VI
Danfoss

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

  • Maneurop reciprocating compressors from Danfoss Commercial Compressors are specially designed for applications with a wide range of operating conditions. All components are of high quality and precision in order to assure a long product life. Maneurop MTZ series compressors are of the hermetic reciprocating type and are designed for medium and high evaporating temperature applications.

    MTZ compressors can be used in new installations and also to replace Maneurop MT/MTE compressors in existing installations. The old MT series compressors were charged with mineral oil and could only be used with R22, while the new replacement MTZ series compressors are charged with polyolester oil and can be used with multiple refrigerants - R134a, R404A, R407A, R407C, R407F, R448A, R449A, R452A, R507A, R513A.

    MTZ compressors have a large internal free volume that protects against the risk of liquid hammering when liquid refrigerant enters the compressor. The positive benefits of internal motor protection, high efficiency circular valve design and high torque motors provide for a quality installation.

    MTZ compressors are fully suction gas cooled. This means that no additional compressor cooling is required and allows the compressors to be insulated with acoustic jackets, to obtain lower sound levels, without the risk of compressor overheating. All compressors are available in VE version (oil equalisation + oil sight glass).

    Note: Rotalock service valves & crankcase heaters are not supplied with compressor & should be purchased separately if required.



  • General Specifications
    Nominal HP6.5 HP
    Displacement135.78 cm³/r
    Number of Cylinders2
    Suction Line Connection 11-3/4"-12UNF x 1-1/8" ODF
    Discharge Line Connection 11-1/4"-12UNF x 3/4" ODF
    Connection TypeRotalock
    Weight40 kg
    Oil Charge1.8 L
    Oil TypePOE

    1. Service valves are not supplied with compressors & should be purchased separately if required

    Electrical Specifications
    Voltage380-400V / 3 / 50Hz
    Motor Type3PH
    Max Continuous Current18 amps
    Locked Rotor Amps80 amps
    Crankcase Heater 2PTC Internal heater 200-600 volts 35 watts
    Line to Line Resistance1.94 OHMS (+/- 7% @ 20^C)

    2. Crankcase Heaters are not supplied with compressors & should be purchased separately if required

  • ContactorMC22B240V

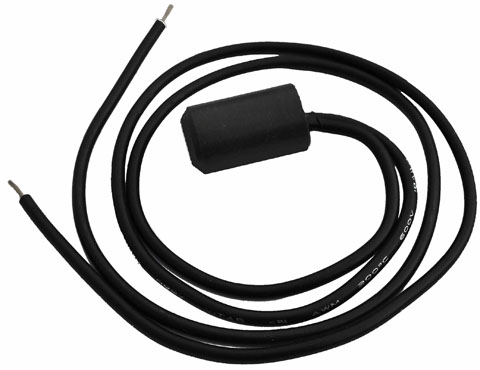

    Crankcase Heater120Z0459
    Discharge Service Gasket0200028025PK

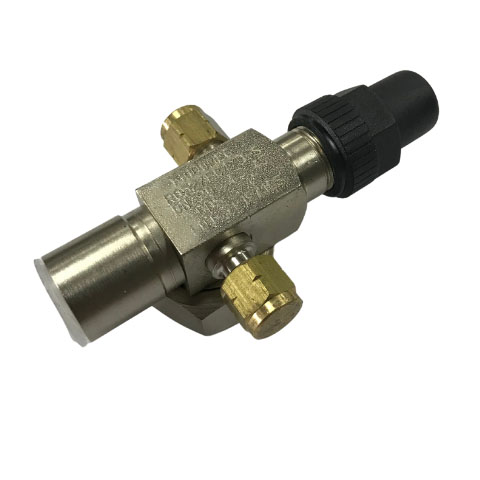

    Discharge Service ValveR052FB4DS
    Electronic OverloadGMP223P22A
    Model NumberMTZ804VI
    Suction Service Gasket0200028035PK

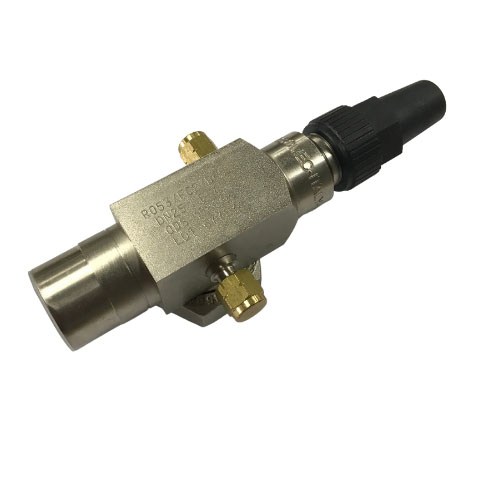

    Suction Service ValveR053FC2DS

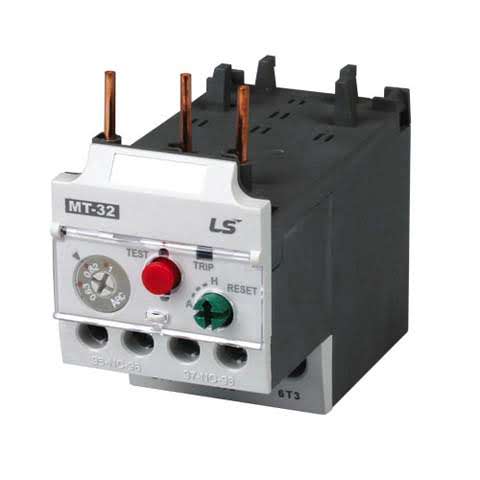

    Thermal OverloadMT323K22
  • danfoss_manuerope_mtz_2
  • R404A
    Cond Temp (°C)Evaporating Temperature (°C)
    -20-15-10-50510
    45Capacity (w)687388791121013910170202056024580
    Input (w)4483506956096108657270057413
    Current (Amps)8.719.46310.210.911.5412.1212.62
    50Capacity (w)609279101002012450152501844022050
    Input (w)4566521758196375689273757828
    Current (Amps)8.8359.67710.511.2812.0212.6813.26
    55Capacity (w)53176949883311000134901632019530
    Input (w)4627534860166635721177488252
    Current (Amps)8.9279.86410.7811.6612.4813.2413.9

    Note:

    20°C Return Gas, no Sub-Cooling
    R507
    Cond Temp (°C)Evaporating Temperature (°C)
    -20-15-10-50510
    45Capacity (w)687388791121013910170202056024580
    Input (w)4483506956096108657270057413
    Current (Amps)8.719.46310.210.911.5412.1212.62
    50Capacity (w)609279101002012450152501844022050
    Input (w)4566521758196375689273757828
    Current (Amps)8.8359.67710.511.2812.0212.6813.26
    55Capacity (w)53176949883311000134901632019530
    Input (w)4627534860166635721177488252
    Current (Amps)8.9279.86410.7811.6612.4813.2413.9

    Note:

    20°C Return Gas, no Sub-Cooling
    R134A
    Cond Temp (°C)Evaporating Temperature (°C)
    -15-10-5051015
    45Capacity (w)4286575675559725123101534018890
    Input (w)2582291732373545383841184383
    Current (Amps)6.8987.2187.5537.8868.2038.4868.722
    50Capacity (w)3863521668818898113101415017470
    Input (w)2632300533643709404043574660
    Current (Amps)6.9437.3077.6898.0738.4438.7859.082
    55Capacity (w)3464469962288092103301297016070
    Input (w)2670308334823867423845954937
    Current (Amps)6.9437.3617.88.2468.6819.0919.459

    Note:

    20°C Return Gas, no Sub-Cooling
    R22
    Cond Temp (°C)Evaporating Temperature (°C)
    -10-5057.21015
    45Capacity (w)10340132001650020290221252462029570
    Input (w)4891532757246087623664186721
    Current (Amps)9.52410.0910.6211.0911.2711.4911.81
    50Capacity (w)9516122101531018880206002295027590
    Input (w)5121562660876510668568977252
    Current (Amps)9.81210.4911.1111.6811.9112.1812.58
    55Capacity (w)112101411017440190472124025570
    Input (w)590364386931713473837799
    Current (Amps)10.8611.612.2912.5612.8913.41

    Note:

    20°C Return Gas, no Sub-Cooling
