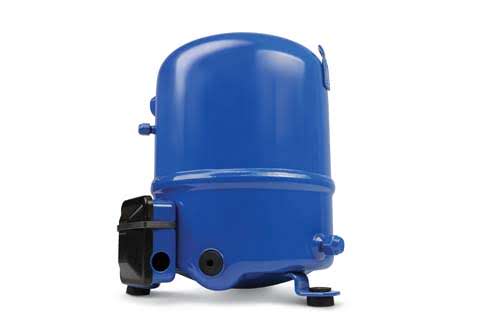

Maneurop Compressor 3PH Multi Refrigerant POE Oil Rotalock - MTZ364VI

Maneurop Compressor 3PH Multi Refrigerant POE Oil Rotalock

Part Number: MTZ364VI

Maneurop Compressor 3PH Multi Refrigerant POE Oil Rotalock

Part Number: MTZ364VI
Danfoss

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

  • Maneurop reciprocating compressors from Danfoss Commercial Compressors are specially designed for applications with a wide range of operating conditions. All components are of high quality and precision in order to assure a long product life. Maneurop MTZ series compressors are of the hermetic reciprocating type and are designed for medium and high evaporating temperature applications.

    MTZ compressors can be used in new installations and also to replace Maneurop MT/MTE compressors in existing installations. The old MT series compressors were charged with mineral oil and could only be used with R22, while the new replacement MTZ series compressors are charged with polyolester oil and can be used with multiple refrigerants - R134a, R404A, R407A, R407C, R407F, R448A, R449A, R452A, R507A, R513A.

    MTZ compressors have a large internal free volume that protects against the risk of liquid hammering when liquid refrigerant enters the compressor. The positive benefits of internal motor protection, high efficiency circular valve design and high torque motors provide for a quality installation.

    MTZ compressors are fully suction gas cooled. This means that no additional compressor cooling is required and allows the compressors to be insulated with acoustic jackets, to obtain lower sound levels, without the risk of compressor overheating. All compressors are available in VE version (oil equalisation + oil sight glass).

    Note: Rotalock service valves & crankcase heaters are not supplied with compressor & should be purchased separately if required.



  • General Specifications
    Nominal HP3 HP
    Displacement60.47 cm³/r
    Number of Cylinders1
    Suction Line Connection 11-1/4"-12UNF x 5/8" ODF
    Discharge Line Connection 11"-14UNF x 1/2" ODF
    Weight25 kg
    Oil Charge0.95 L
    Oil TypePOE

    1. Service valves are not supplied with compressors & should be purchased separately if required

    Electrical Specifications
    Voltage380-400V / 3 / 50Hz
    Motor Type3PH
    Max Continuous Current9 amps
    Locked Rotor Amps30 amps
    Crankcase Heater 2PTC Internal heater 200-600 volts 35 watts
    Line to Line Resistance5.57 OHMS (+/- 7% @ 20^C)

    2. Crankcase Heaters are not supplied with compressors & should be purchased separately if required

  • ContactorMC12B240V
    Crankcase Heater120Z0459
    Discharge Service Gasket0200028005PK
    Discharge Service ValveR051FA8DS
    Electronic OverloadGMP223P22A
    Model NumberMTZ364VI
    Suction Service Gasket0200028025PK
    Suction Service ValveR052FB2DS
    Thermal OverloadMT323K10
  • danfoss_manuerope_mtz_1
  • R404A
    Cond Temp (°C)Evaporating Temperature (°C)
    -20-15-10-50510
    45Capacity (w)32174169525264747842936111033
    Input (w)2052231725672797300431843333
    Current (Amps)4.244.64.955.295.585.815.97
    50Capacity (w)369746785780701083739868
    Input (w)239326772942318734073598
    Current (Amps)4.715.55.55.846.136.34
    55Capacity (w)320040755053614173428656
    Input (w)243527533057334136023837
    Current (Amps)4.795.255.76.126.486.76

    Note:

    20°C Return Gas, no Sub-Cooling
    R507
    Cond Temp (°C)Evaporating Temperature (°C)
    -20-15-10-50510
    45Capacity (w)32174169525264747842936111033
    Input (w)2052231725672797300431843333
    Current (Amps)4.244.64.955.295.585.815.97
    50Capacity (w)369746785780701083739868
    Input (w)239326772942318734073598
    Current (Amps)4.715.55.55.846.136.34
    55Capacity (w)320040755053614173428656
    Input (w)243527533057334136023837
    Current (Amps)4.795.255.76.126.486.76

    Note:

    20°C Return Gas, no Sub-Cooling
    R134A
    Cond Temp (°C)Evaporating Temperature (°C)
    -15-10-5051015
    45Capacity (w)2255295937884755587371528602
    Input (w)1295145016001740186519692047
    Current (Amps)3.23.33.53.63.83.94
    50Capacity (w)2061271834924395543966347990
    Input (w)1329149916661826197321022209
    Current (Amps)3.23.373.723.723.884.044.18
    55Capacity (w)1871247631894023498860947352
    Input (w)1352153817241906207722332369
    Current (Amps)3.23.43.63.844.24.4

    Note:

    20°C Return Gas, no Sub-Cooling
    R22
    Cond Temp (°C)Evaporating Temperature (°C)
    -10-5057.21015
    45Capacity (w)499162397618913598671079812611
    Input (w)2347255927542924298630653169
    Current (Amps)4.34.584.855.15.195.315.48
    50Capacity (w)457457727094854792461013511866
    Input (w)2449268629083110318732853426
    Current (Amps)4.434.755.375.375.495.645.86
    55Capacity (w)41205257651078848545938711022
    Input (w)2542280730623299339335123694
    Current (Amps)4.564.935.315.675.8266.3

    Note:

    20°C Return Gas, no Sub-Cooling
