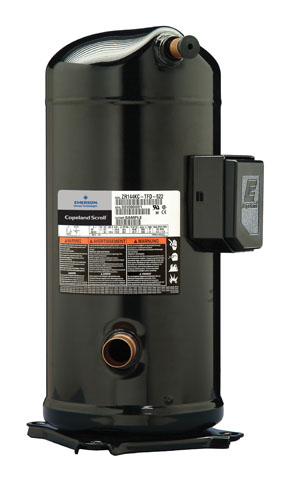

Copeland Scroll Compressor 3PH POE Oil Stub Tube - ZR125KCETFD522

Copeland Scroll Compressor 3PH POE Oil Stub Tube

Part Number: ZR125KCETFD522

Copeland Scroll Compressor 3PH POE Oil Stub Tube

Part Number: ZR125KCETFD522
Copeland

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

  • ZR125KCE-TFD-522 COPELAND ZR SCROLL COMPRESSORS

    ZR Copeland Scroll compressors for comfort and process/precision cooling applications. Applied in the air conditioning and comfort industry for water chillers, rooftops and close control unit applications, scroll compressors are now the most used compression technology replacing reciprocating and screw compressors due to its undeniable superiority.

    Features and Benefits:

    • Copeland Scroll axial and radial compliance for superior reliability and efficiency

    • Wide scroll line-up for R407C and R134a

    • Low TEWI (Total Equivalent Warming Impact)

    • Low sound and vibration level

    • Low oil circulation rate

    • Copeland qualified tandem and trio configurations for superior seasonal efficiency

  • General Specifications
    Nominal HP10 HP
    Displacement171.4 cm³/r
    Suction Line Connection1-3/8"
    Discharge Line Connection7/8"
    Connection Typestub tube
    Weight64 kg
    Oil Charge3.14 L
    Oil TypePOE
    Oil Sight GlassNo
    Electrical Specifications
    Motor Type3PH
    Max Continuous Current26.9 amps
    Locked Rotor Amps125 amps
    Rated Load Amps19.2 amps
    Crankcase Heater 1240V 90W (CH-255) Wrap Around

    1. not supplied

  • ContactorMC32A240V
    Crankcase Heater018004701
    Thermal OverloadMT323K22
  • copeland_ZR_02

    Units Dimensions (mm)
    A243
    B285
    C279
    D232
    E141
    F520
    G552
  • copeland_3PH_04
  • R22
    Cond Temp (°C)Evaporating Temperature (°C)
    -10-507.21012.8
    45Capacity (w)178902108025950328703595039190
    Input (w)740074577524763976917774
    Current (Amps)13.71789013.8141414.1
    50Capacity (w)171102020024950317503476037940
    Input (w)816582168275835484058456
    Current (Amps)14.614.614.714.914.915
    55Capacity (w)1908023680303103327036370
    Input (w)91309170923192619301
    Current (Amps)15.91616.116.116.2

    Note:

    4.4 Deg Return Gas, no Sub-Cooling, 35 Deg Ambient
    Supplied with: Internal Motor Protection, Rubber Mounting Kit
    IMPORTANT – WARNING : Read Installation Notes Before Running Any Scroll Compressors
