Copeland Scroll Compressor 3PH POE Oil Stub Tube - ZR61KCETFD522

Copeland Scroll Compressor 3PH POE Oil Stub Tube

Part Number: ZR61KCETFD522

Copeland Scroll Compressor 3PH POE Oil Stub Tube

Part Number: ZR61KCETFD522
Copeland

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

  • ZR61KCE-TFD-522 COPELAND ZR SCROLL COMPRESSORS

    ZR Copeland Scroll compressors for comfort and process/precision cooling applications. Applied in the air conditioning and comfort industry for water chillers, rooftops and close control unit applications, scroll compressors are now the most used compression technology replacing reciprocating and screw compressors due to its undeniable superiority.

    Features and Benefits:

    • Copeland Scroll axial and radial compliance for superior reliability and efficiency

    • Wide scroll line-up for R407C and R134a

    • Low TEWI (Total Equivalent Warming Impact)

    • Low sound and vibration level

    • Low oil circulation rate

    • Copeland qualified tandem and trio configurations for superior seasonal efficiency

  • General Specifications
    Nominal HP5.1 HP
    Displacement82.59 cm³/r
    Suction Line Connection7/8"
    Discharge Line Connection1/2"
    Connection Typestub tube
    Weight36 kg
    Oil Charge1.83 L
    Oil TypePOE
    Oil Sight GlassNo
    Electrical Specifications
    Motor Type3PH
    Max Continuous Current14 amps
    Locked Rotor Amps65 amps
    Rated Load Amps10 amps
    Crankcase Heater240V 70W (CH-280) Wrap Around
    Line to Line Resistance2.75 OHMS (+/- 7%)
  • ContactorMC12B240V
    Crankcase Heater018005700

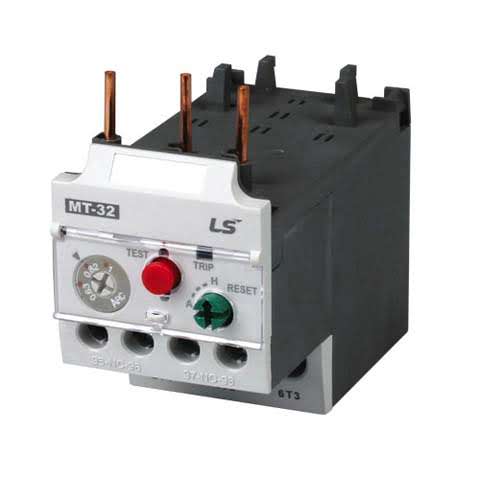

    Thermal OverloadMT323K13
  • copeland_ZR_01

    Units Dimensions (mm)
    A241
    B245
    C238
    D185
    E317
    F430
    G458
  • copeland_3PH_04
  • R22
    Cond Temp (°C)Evaporating Temperature (°C)
    -10-507.21012.8
    45Capacity (w)86601026012680161001759019140
    Input (w)345034823536366937623866
    Current (Amps)6.886606.97.27.37.4
    50Capacity (w)8220977012140155001696018480
    Input (w)385038753924403941214223
    Current (Amps)7.47.47.47.67.77.9
    55Capacity (w)925011530147801620017710
    Input (w)43634390447945504641
    Current (Amps)8.18.18.28.38.5

    Note:

    4.4 Deg Return Gas, no Sub-Cooling, 35 Deg Ambient
    Supplied with: Internal Motor Protection, Rubber Mounting Kit
    IMPORTANT – WARNING : Read Installation Notes Before Running Any Scroll Compressors
