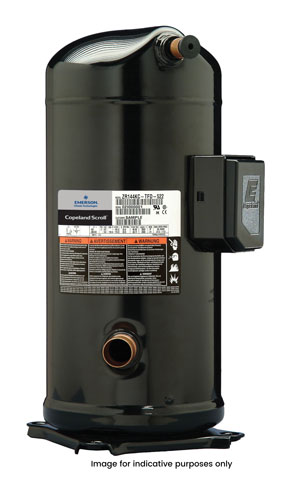

Copeland Scroll Compressor 3PH POE Oil Stub Tube - ZR72KCETFD522

Copeland Scroll Compressor 3PH POE Oil Stub Tube

Part Number: ZR72KCETFD522

Copeland Scroll Compressor 3PH POE Oil Stub Tube

Part Number: ZR72KCETFD522

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.


    ZR Copeland Scroll compressors for comfort and process/precision cooling applications. Applied in the air conditioning and comfort industry for water chillers, rooftops and close control unit applications, scroll compressors are now the most used compression technology replacing reciprocating and screw compressors due to its undeniable superiority.

    Features and Benefits:

    • Copeland Scroll axial and radial compliance for superior reliability and efficiency

    • Wide scroll line-up for R407C and R134a

    • Low TEWI (Total Equivalent Warming Impact)

    • Low sound and vibration level

    • Low oil circulation rate

    • Copeland qualified tandem and trio configurations for superior seasonal efficiency

  • General Specifications
    Nominal HP6 HP
    Displacement101.2 cm³/r
    Suction Line Connection7/8"
    Discharge Line Connection1/2"
    Connection Typestub tube
    Weight39 kg
    Oil Charge1.66 L
    Oil TypePOE
    Oil Sight GlassNo
    Electrical Specifications
    Motor Type3PH
    Max Continuous Current14 amps
    Locked Rotor Amps67 amps
    Rated Load Amps10 amps
    Crankcase Heater 1240V 70W (CH-280) Wrap Around
    Line to Line Resistance2.27 OHMS (+/- 7%)

    1. not supplied

  • ContactorMC12B240V
    Crankcase Heater018005700
    Thermal OverloadMT323K13
  • copeland_ZR_01

    Units Dimensions (mm)
  • copeland_3PH_04
  • R22
    Cond Temp (°C)Evaporating Temperature (°C)
    45Capacity (w)100401199014940191702109023120
    Input (w)412641414165421942514292
    Current (Amps)7.5100407.57.67.6
    50Capacity (w)95001141014290184502032022290
    Input (w)462746344647468347034734
    Current (Amps)
    55Capacity (w)1070013500175301930021270
    Input (w)52275227523752575278
    Current (Amps)


    4.4 Deg Return Gas, no Sub-Cooling, 35 Deg Ambient
    Supplied with: Internal Motor Protection, Rubber Mounting Kit
    IMPORTANT – WARNING : Read Installation Notes Before Running Any Scroll Compressors
