Copeland Scroll Compressor 3PH POE Oil Stub Tube - ZR81KCETFD522

Copeland Scroll Compressor 3PH POE Oil Stub Tube

Part Number: ZR81KCETFD522

Copeland Scroll Compressor 3PH POE Oil Stub Tube

Part Number: ZR81KCETFD522
Copeland

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

  • ZR81KCE-TFD-522 COPELAND ZR SCROLL COMPRESSORS

    ZR Copeland Scroll compressors for comfort and process/precision cooling applications. Applied in the air conditioning and comfort industry for water chillers, rooftops and close control unit applications, scroll compressors are now the most used compression technology replacing reciprocating and screw compressors due to its undeniable superiority.

    Features and Benefits:

    • Copeland Scroll axial and radial compliance for superior reliability and efficiency

    • Wide scroll line-up for R407C and R134a

    • Low TEWI (Total Equivalent Warming Impact)

    • Low sound and vibration level

    • Low oil circulation rate

    • Copeland qualified tandem and trio configurations for superior seasonal efficiency

  • General Specifications
    Nominal HP6.75 HP
    Displacement114.3 m³/Hr
    Suction Line Connection7/8"
    Discharge Line Connection3/4"
    Connection Typestub tube
    Weight40 kg
    Oil Charge1.66 L
    Oil TypePOE
    Oil Sight GlassNo
    Electrical Specifications
    Motor Type3PH
    Max Continuous Current17 amps
    Locked Rotor Amps101 amps
    Rated Load Amps12.1 amps
    Crankcase Heater 1240V 70W (CH-280) Wrap Around
    Line to Line Resistance1.79 OHMS (+/- 7%)

    1. not supplied

  • ContactorMC18B240V

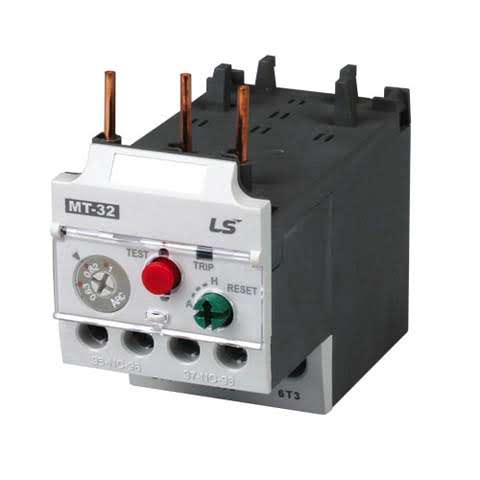

    Thermal OverloadMT323K18
    Crankcase Heater018005700
  • copeland_ZR_01

    Units Dimensions (mm)
    A241
    B249
    C238
    D185
    E317
    F435
    G465
  • copeland_3PH_04
  • R22
    Cond Temp (°C)Evaporating Temperature (°C)
    -10-507.21012.8
    45Capacity (w)110501324016590212602329025400
    Input (w)467147084755483348644916
    Current (Amps)9.6110509.79.89.99.9
    50Capacity (w)104601257015830204902255024670
    Input (w)516952045248531753485389
    Current (Amps)10.110.110.210.310.310.4
    55Capacity (w)1177014900194802150023620
    Input (w)57935836589459255955
    Current (Amps)10.810.91111.111.1

    Note:

    4.4 Deg Return Gas, no Sub-Cooling, 35 Deg Ambient
    Supplied with: Internal Motor Protection, Rubber Mounting Kit
    IMPORTANT – WARNING : Read Installation Notes Before Running Any Scroll Compressors
