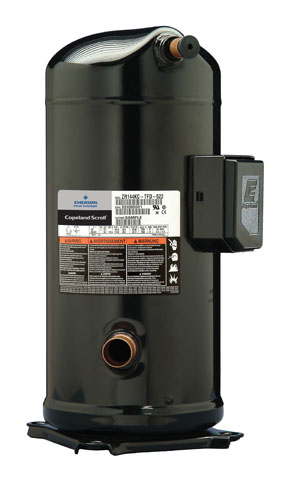

Copeland Scroll Compressor 3PH POE Oil Stub Tube - ZR108KCETFD522

Copeland Scroll Compressor 3PH POE Oil Stub Tube

Part Number: ZR108KCETFD522

Copeland Scroll Compressor 3PH POE Oil Stub Tube

Part Number: ZR108KCETFD522

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.


    ZR Copeland Scroll compressors for comfort and process/precision cooling applications. Applied in the air conditioning and comfort industry for water chillers, rooftops and close control unit applications, scroll compressors are now the most used compression technology replacing reciprocating and screw compressors due to its undeniable superiority.

    Features and Benefits:

    • Copeland Scroll axial and radial compliance for superior reliability and efficiency

    • Wide scroll line-up for R407C and R134a

    • Low TEWI (Total Equivalent Warming Impact)

    • Low sound and vibration level

    • Low oil circulation rate

    • Copeland qualified tandem and trio configurations for superior seasonal efficiency

  • General Specifications
    Nominal HP9 HP
    Displacement152.9 cm³/r
    Suction Line Connection1-3/8"
    Discharge Line Connection7/8"
    Connection Typestub tube
    Weight64 kg
    Oil Charge3.14 L
    Oil TypePOE
    Oil Sight GlassNo
    Electrical Specifications
    Motor Type3PH
    Max Continuous Current24.2 amps
    Locked Rotor Amps114 amps
    Rated Load Amps17.3 amps
    Crankcase Heater 1240V 90W (CH-255) Wrap Around
    Line to Line Resistance1.36 OHMS (+/- 7%)

    1. not supplied

  • ContactorMC22B240V
    Crankcase Heater018004701
    Thermal OverloadMT323K22
  • copeland_ZR_02

    Units Dimensions (mm)
  • copeland_3PH_04
  • R22
    Cond Temp (°C)Evaporating Temperature (°C)
    45Capacity (w)154101823022530287303155034540
    Input (w)636564046464657966416724
    Current (Amps)121541012.112.212.312.4
    50Capacity (w)146601743021630277103043033360
    Input (w)703070557099717872297290
    Current (Amps)12.812.812.812.91313.1
    55Capacity (w)1640020490263702904031880
    Input (w)78667873791679477987
    Current (Amps)13.913.913.91414


    4.4 Deg Return Gas, no Sub-Cooling, 35 Deg Ambient
    Supplied with: Internal Motor Protection, Rubber Mounting Kit
    IMPORTANT – WARNING : Read Installation Notes Before Running Any Scroll Compressors
