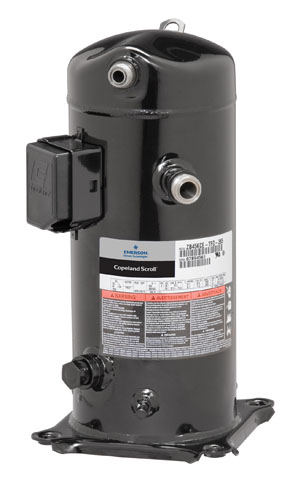

Copeland Scroll Compressor 3PH POE Oil Stub Tube - ZB58KQETFD551

Copeland Scroll Compressor 3PH POE Oil Stub Tube

Part Number: ZB58KQETFD551

Copeland Scroll Compressor 3PH POE Oil Stub Tube

Part Number: ZB58KQETFD551
Copeland

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

  • ZB58KQE-TFD-551 COPELAND ZB SERIES SCROLL COMPRESSORS

    Copeland refrigeration scroll compressors offer outstanding solutions for medium and high temperature applications. ZB Series of refrigeration scroll compressors are ideal for compact system designs that require a high degree of reliability and energy-efficiency. Applicable refrigerants include R22, R404A, R507 and R134a.

    Dual Compliance:

    This design ensures good sealing between the scroll spirals. It allows the scroll spirals to contact and separate along the radial and axial directions. Debris or liquid can go through the scroll disks without damaging the compressor. This results in: * longer lifetime and better reliability * better liquid handling capability * better handling of debris.

    Designed for high energy-efficiency:

    The scroll spirals in a scroll compressor wear in, rather than wear out. Over time, the wear-in improves performance. This ensures a very high volumetric efficiency.

    Designed for lower noise and vibration:

    The scroll design creates a smooth sound spectrum and better sound quality. The layout of the compression chambers is symmetric, making for very minimal imbalances. Manufacturing accuracy of scroll compressors is quite high. Scroll compressors do not normally require any vibration-absorbing device.

    "Unloaded Start" technique:

    After shut down, the two scroll forms are separated from each other. This enables full internal pressure equalization at shut down. For this reason, additional start capacitors are not normally necessary at start-up of single phase models.

  • General Specifications
    Nominal HP8 HP
    Displacement127.1 m³/Hr
    Suction Line Connection1-3/4" 12UNF 1-3/8 ODF
    Discharge Line Connection1-1/4" 12UNF 7/8 ODF
    Connection Typerotalock
    Weight60 kg
    Oil Charge2.51 L
    Oil TypePOE
    Oil Sight GlassYes
    Electrical Specifications
    Motor Type3PH
    Max Continuous Current23 amps
    Locked Rotor Amps95 amps
    Rated Load Amps16.4 amps
    Crankcase Heater 1240V 90W (CH-255) Wrap Around
    Line to Line Resistance1.799 OHMS (+/- 7%)

    1. Not supplied

  • Suction Service Gasket2605222835
    Discharge Service Gasket2605142030
    Crankcase Heater018004701
  • copeland_ZB_02

    Units Dimensions (mm)
    A243
    B243
    C496
    F465
  • R404A
    Cond Temp (°C)Evaporating Temperature (°C)
    -15-10-5057.2
    45Capacity (w)107501325016050191502270024400
    Input (w)631063406380641064106390
    Current (Amps)12.11075012.2512.312.3512.3
    50Capacity (w)95401195014600175002080022300
    Input (w)708070707090711071107100
    Current (Amps)12.951313.113.1513.1513.15
    55Capacity (w)82101055013000157501875020200
    Input (w)795079107910791079007880
    Current (Amps)141414.0514.114.114.1

    Note:

    4.4 Deg Return Gas, no Sub-Cooling, 35 Deg Ambient
    Supplied with: Internal Motor Protection, Rubber Mounting Kit
