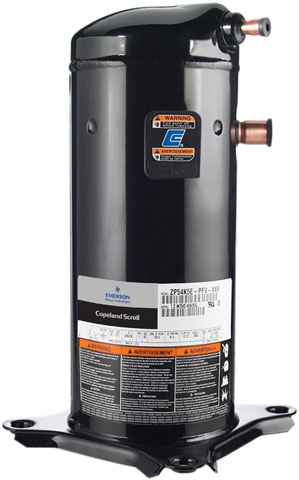

Copeland Scroll Compressor 3PH R410A POE Oil Stub Tube - ZP83KCETFD522

Copeland Scroll Compressor 3PH R410A POE Oil Stub Tube

Part Number: ZP83KCETFD522

Copeland Scroll Compressor 3PH R410A POE Oil Stub Tube

Part Number: ZP83KCETFD522
Copeland

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

  • ZP83KCE-TFD-522 COPELAND ZP SCROLL COMPRESSOR RANGE FOR R410A



    ZP Copeland Scroll compressors, for R410A, for comfort and process/precision cooling applications. Emerson Climate Technologies has been the pioneer in launching the first complete line-up of R410A commercial scroll compressors. ZP Copeland Scroll compressors are perfectly suitable for air cooled chiller systems up to 900kW (1100 kW if water-cooled) featuring high comfort and superior seasonal efficiency. Whether used in stand-alone, tandem or trio configurations, the broad ZP Copeland Scroll line-up meets today’s market requirements with unmatched flexibility, efficiency and proven reliability.



    Features and Benefits:

    • Copeland qualified tandem and trio configurations for superior seasonal efficiency

    • Copeland Scroll axial and radial compliance for superior reliability and efficiency

    • Extended 5K operating envelope suitable for heat pump applications

    • Low TEWI (Total Equivalent Warming Impact)

    • Wide scroll line-up for R410A

    • Low sound and vibration level

    • Low oil circulation rate

  • General Specifications
    Nominal HP7 HP
    Displacement76 m³/Hr
    Suction Line Connection7/8"
    Discharge Line Connection1/2"
    Connection Typestub tube
    Weight40 kg
    Oil Charge2 L
    Oil TypePOE
    Oil Sight GlassNo
    Electrical Specifications
    Motor Type3PH
    Max Continuous Current19 amps
    Locked Rotor Amps101 amps
    Rated Load Amps13.6 amps
    Crankcase Heater240V 70W (CH-280) Wrap Around
    Line to Line Resistance1.79 OHMS (+/- 7%)
  • ContactorMC18B240V
    Thermal OverloadMT323K18
    Crankcase Heater018005700
  • copeland_ZP_02

    Units Dimensions (mm)
    A245
    B250
    C444 to 446
    D414
    E235 to 237
    F298
    G186
  • copeland_3PH_04
  • R410A
    Cond Temp (°C)Evaporating Temperature (°C)
    -10-507.21012
    45Capacity (w)95001180014450210002250024900
    Input (w)505050505100515051505200
    Current (Amps)9.99500101010.110.1
    50Capacity (w)109001340016300211002340025100
    Input (w)575057505750580058005850
    Current (Amps)10.810.810.810.910.911
    55Capacity (w)1230015100182002190023500
    Input (w)65006500650065006550
    Current (Amps)11.811.811.811.911.9

    Note:

    4.4 Deg Return Gas, no Sub-Cooling, 35 Deg Ambient
    Supplied with: Internal Motor Protection, Rubber Mounting Kit
    IMPORTANT – WARNING : Read Installation Notes Before Running Any Scroll Compressors
