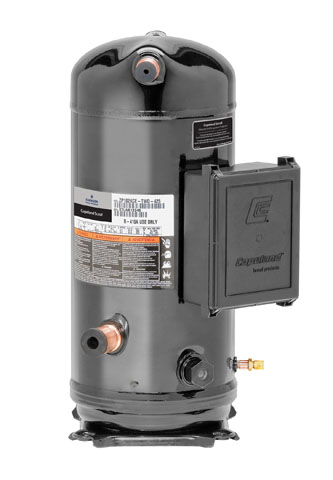

Copeland Scroll Compressor 3PH R410A POE Oil Stub Tube - ZP182KCETFD522

Copeland Scroll Compressor 3PH R410A POE Oil Stub Tube

Part Number: ZP182KCETFD522

Copeland Scroll Compressor 3PH R410A POE Oil Stub Tube

Part Number: ZP182KCETFD522
Copeland

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

  • ZP182KCE-TFD-522 COPELAND ZP SCROLL COMPRESSOR RANGE FOR R410A



    ZP Copeland Scroll compressors, for R410A, for comfort and process/precision cooling applications. Emerson Climate Technologies has been the pioneer in launching the first complete line-up of R410A commercial scroll compressors. ZP Copeland Scroll compressors are perfectly suitable for air cooled chiller systems up to 900kW (1100 kW if water-cooled) featuring high comfort and superior seasonal efficiency. Whether used in stand-alone, tandem or trio configurations, the broad ZP Copeland Scroll line-up meets today’s market requirements with unmatched flexibility, efficiency and proven reliability.



    Features and Benefits:

    • Copeland qualified tandem and trio configurations for superior seasonal efficiency

    • Copeland Scroll axial and radial compliance for superior reliability and efficiency

    • Extended 5K operating envelope suitable for heat pump applications

    • Low TEWI (Total Equivalent Warming Impact)

    • Wide scroll line-up for R410A

    • Low sound and vibration level

    • Low oil circulation rate

  • General Specifications
    Nominal HP15 HP
    Displacement164 cm³/r
    Suction Line Connection1-3/8"
    Discharge Line Connection7/8"
    Connection Typestub tube
    Weight67 kg
    Oil Charge3 L
    Oil TypePOE
    Oil Sight GlassNo
    Electrical Specifications
    Motor Type3PH
    Max Continuous Current40 amps
    Locked Rotor Amps174 amps
    Rated Load Amps28.6 amps
    Crankcase Heater240V 90W (CH-255) Wrap Around
    Line to Line Resistance0.83 OHMS (+/- 7%)
  • ContactorMC32A240V
    Thermal OverloadMT323K32
    Crankcase Heater018004701
  • copeland_ZP_03

    Units Dimensions (mm)
    A242
    B279
    C552
    D520
    E261
    F140
  • copeland_3PH_04
  • R410A
    Cond Temp (°C)Evaporating Temperature (°C)
    -10-507.21012
    45Capacity (w)266003250039000495005450058500
    Input (w)108001090011000111001120011200
    Current (Amps)22.42660022.722.92323
    50Capacity (w)247003000036500465005150055000
    Input (w)120001210012100123001240012400
    Current (Amps)24.124.224.424.524.624.7
    55Capacity (w)2780033500430004750051000
    Input (w)1350013500136001370013700
    Current (Amps)26.326.426.526.626.6

    Note:

    4.4 Deg Return Gas, no Sub-Cooling, 35 Deg Ambient
    Supplied with: Internal Motor Protection, Rubber Mounting Kit
    IMPORTANT – WARNING : Read Installation Notes Before Running Any Scroll Compressors
