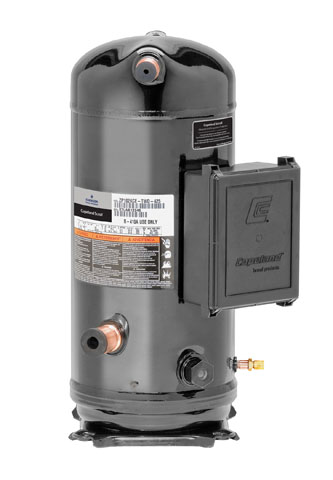

Copeland Scroll Compressor 3PH R410A POE Oil Stub Tube - ZP103KCETFD522

Copeland Scroll Compressor 3PH R410A POE Oil Stub Tube

Part Number: ZP103KCETFD522

Copeland Scroll Compressor 3PH R410A POE Oil Stub Tube

Part Number: ZP103KCETFD522
Copeland

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

  • ZP103KCE-TFD-522 COPELAND ZP SCROLL COMPRESSOR RANGE FOR R410A



    ZP Copeland Scroll compressors, for R410A, for comfort and process/precision cooling applications. Emerson Climate Technologies has been the pioneer in launching the first complete line-up of R410A commercial scroll compressors. ZP Copeland Scroll compressors are perfectly suitable for air cooled chiller systems up to 900kW (1100 kW if water-cooled) featuring high comfort and superior seasonal efficiency. Whether used in stand-alone, tandem or trio configurations, the broad ZP Copeland Scroll line-up meets today’s market requirements with unmatched flexibility, efficiency and proven reliability.



    Features and Benefits:

    • Copeland qualified tandem and trio configurations for superior seasonal efficiency

    • Copeland Scroll axial and radial compliance for superior reliability and efficiency

    • Extended 5K operating envelope suitable for heat pump applications

    • Low TEWI (Total Equivalent Warming Impact)

    • Wide scroll line-up for R410A

    • Low sound and vibration level

    • Low oil circulation rate

  • General Specifications
    Nominal HP9 HP
    Displacement95 cm³/r
    Suction Line Connection1-3/8"
    Discharge Line Connection7/8"
    Connection Typestub tube
    Weight62 kg
    Oil Charge3 L
    Oil TypePOE
    Oil Sight GlassNo
    Electrical Specifications
    Motor Type3PH
    Max Continuous Current26 amps
    Locked Rotor Amps111 amps
    Rated Load Amps18.6 amps
    Crankcase Heater240V 90W (CH-255) Wrap Around
    Line to Line Resistance1.36 OHMS (+/- 7%)
  • ContactorMC18B240V
    Thermal OverloadMT323K18
    Crankcase Heater018004701
  • copeland_ZP_02

    Units Dimensions (mm)
    A242
    B279
    C533
    D501
    E243
    F122
    G232
  • copeland_3PH_04
  • R410A
    Cond Temp (°C)Evaporating Temperature (°C)
    -10-507.21012
    45Capacity (w)148001830022200283003150033500
    Input (w)640063006300635064006450
    Current (Amps)12.61480012.512.512.612.7
    50Capacity (w)135001690020700266002940031500
    Input (w)725071507050705071007150
    Current (Amps)13.613.513.413.413.513.5
    55Capacity (w)1540019100248002750029400
    Input (w)81008000790079507950
    Current (Amps)14.714.614.514.514.6

    Note:

    4.4 Deg Return Gas, no Sub-Cooling, 35 Deg Ambient
    Supplied with: Internal Motor Protection, Rubber Mounting Kit
    IMPORTANT – WARNING : Read Installation Notes Before Running Any Scroll Compressors
