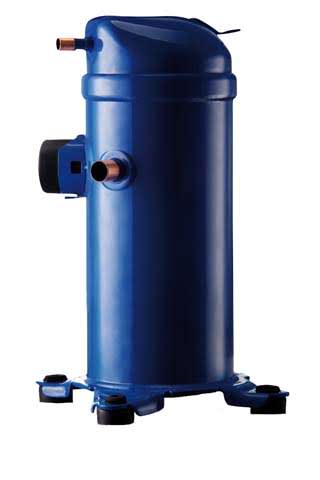

Danfoss Scroll Compressor 1PH Multi Refrigerant POE Stub Tube - MLZ015T5LP9A

Danfoss Scroll Compressor 1PH Multi Refrigerant POE Stub Tube

Part Number: MLZ015T5LP9A

Danfoss Scroll Compressor 1PH Multi Refrigerant POE Stub Tube

Part Number: MLZ015T5LP9A
Danfoss

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

  • MLZ / LLZ - Scroll Compressors for Refrigeration

    MLZ and LLZ scroll compressors are dedicated to commercial and light commercial refrigeration applications with refrigerants R134a,
    R404A / R507A, R22, R407A. Both brazed and rotolock connections are available for most of the compressors.

    MLZ: medium-temperature scroll compressors
    R404 / R507A, R407A / F, R134a, R448A, R449A, R452A
    LLZ: low-temperature scroll available with economizer line
    (R404A, R507A, R452A).

    Features:

    • High efficiency motor
    • Optimised pressure ration for refrigeration applications
    • Optimised scroll design
    • HOOP overload protection
    • Rotolock or braze (stub tube) connections
    • Optional sound jacket attenuates sound levels
    • Multi-refrigerant scrolls save on inventory
    • Suitable for transport of refrigerated goods
    • LLZ models only - Vapour injection available with optional kit increases LLZ efficiency and cooling capacity



    Note: Rotalock service valves & crankcase heaters are not supplied with compressor & should be purchased separately if required.

    This MLZ015T5LP9A compressor is the replacement compressor for Danfoss Optyma Slim OPMPUE034MLW10G, OPMPVE034MLW10G and Danfoss Optyma Plus condensing units.

  • General Specifications
    Nominal Cooling Capacity3.3 kW
    Swept Volume33.77 cm³ cm³
    Suction Line ConnectionStub Tube 3/4" ODF
    Discharge Line ConnectionStub Tube 1/2" ODF
    Weight30.84 kg
    Oil Charge1.06 L
    Oil TypePOE Oil 215PZ
    ElectricsSpade
    Electrical Specifications
    Voltage220-240/1/50
    Motor TypePSC
    Max Continuous Current19 amps
    Locked Rotor Amps60 amps
    Rated Load Amps12.2 amps
    Crankcase Heater 165watt, 230V Belt Type

    1. Crankcase Heaters are not supplied with compressors & should be purchased separately if required

  • Crankcase Heater120Z5040
    Run Capacitor40 µF / 370 V
    Start Capacitor145-175 µF / 330 V
