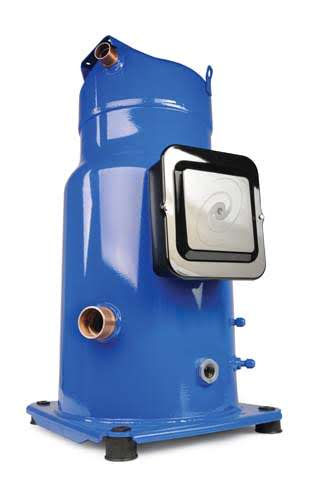

Danfoss Scroll Compressor 3PH Multi Refrigerant POE Rotalock - SZ1154RI

Danfoss Scroll Compressor 3PH Multi Refrigerant POE Rotalock

Part Number: SZ1154RI

Danfoss Scroll Compressor 3PH Multi Refrigerant POE Rotalock

Part Number: SZ1154RI
Danfoss

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

  • Danfoss is a worldwide manufacturer of compressors and condensing units for refrigeration and HVAC applications. Danfoss have a wide range of high quality and innovative products that help your company to find the best possible energy efficient solution that respects the environment and reduces total life cycle costs.

    Danfoss have 40 years of experience within the development of hermetic compressors which places them amongst the global leaders in the industry. Today Danfoss operate from engineering and manufacturing facilities spanning across three continents.

    This SZ115-4RI model is supplied with a bi-metallic single pole, single throw thermostat located in the motor windings. If the motor overheats due to low refrigerant flow or improper rotation, the thermostat will open. Because the thermostat is an automatic reset device it must be wired within a lockout safety circuit with a manual reset. It is compulsory to fit an external overload protector to protect against over current & phase loss.

    The SZ range of compressors benefit from the improved design features below to achieve the highest efficiency:

    • Gas circulation, motor cooling and oil behaviour are improved on light commercial platform models by a new patented motor cap design.

    • Part protection and assembly reduces internal leaks and increases life durability.

    • Improved part isolation reduces greatly acoustic levels

    • Gas intake design induces higher resistance to liquid slugging.

    • Multi-refrigerant (R134a, R404A, R407C, R507A) optimized scroll profile and charged with POE oil.

    Note: Rotalock service valves & crankcase heaters are not supplied with compressors & should be purchased separately if required.



  • General Specifications
    Nominal HP9.5 HP
    Displacement26.97 m³/Hr
    Swept Volume155 cm³/rev
    Suction Line Connection 1Rotalock 1-3/4 12UNF x 1-1/8" ODF
    Discharge Line Connection 1Rotalock 1-1/4 12UNF x 3/4" ODF
    Weight78 kg
    Oil Charge3.8 L
    Oil Type160SZ P.O.E. Oil

    1. Service valves are not supplied with compressors & should be purchased separately if required

    Electrical Specifications
    Voltage380-400V / 3 / 50Hz
    Motor Type3PH
    Max Continuous Current25 amps
    Locked Rotor Amps120
    Max Operating Amps25 amps
    Crankcase Heater 2230 volts 65 watts
    Line to Line Resistance1.16 OHMS (+/- 7% @ 25ºC)

    2. Crankcase Heaters are not supplied with compressors & should be purchased separately if required

  • ContactorMC32A240V
    Crankcase Heater7773107
    Discharge Service Gasket0200028025PK
    Discharge Service ValveR052FB4DS
    Electronic OverloadGMP403P40A
    Model NumberSZ1154RI
    Suction Service Gasket0200028035PK
    Suction Service ValveR053FC2DS
    Thermal OverloadMT323K25
  • danfoss_manuerope_scroll_b

    Units Dimensions (mm)
    D254
    H586
    H1180
    H2538
  • R407C
    Cond Temp (°C)Evaporating Temperature (°C)
    -10-5057.21015
    45Capacity (w)14680184982292628020304893384040442
    Input (w)6836684068296803678167586691
    Current (Amps)12.2612.2712.2612.2212.212.1612.07
    50Capacity (w)13564171982141326269286243182238131
    Input (w)7705770476907658763376077534
    Current (Amps)13.4313.4313.3713.3713.3413.313.2
    55Capacity (w)157821976824366265992963535632
    Input (w)870186828645861585888509
    Current (Amps)14.814.7714.7214.6914.6514.54

    Note:

    11.1k Superheat, 8.3K Subcooling, 35°C Ambient
