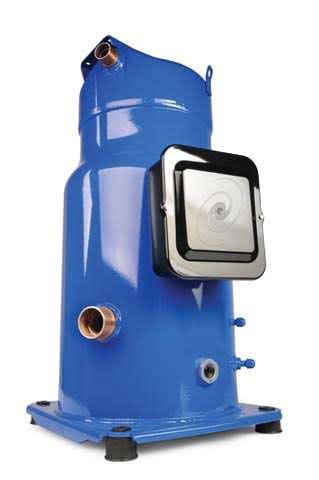

Danfoss Scroll Compressor 3PH R22 Mineral Oil Stub Tube - SM1854CAI

Danfoss Scroll Compressor 3PH R22 Mineral Oil Stub Tube

Part Number: SM1854CAI

Danfoss Scroll Compressor 3PH R22 Mineral Oil Stub Tube

Part Number: SM1854CAI
Danfoss

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

  • Danfoss is a worldwide manufacturer of compressors and condensing units for refrigeration and HVAC applications. Danfoss have a wide range of high quality and innovative products that help your company to find the best possible energy efficient solution that respects the environment and reduces total life cycle costs.

    Danfoss have 40 years of experience within the development of hermetic compressors which places them amongst the global leaders in the industry. Today Danfoss operate from engineering and manufacturing facilities spanning across three continents.

    This SM185-4CAI model is supplied with a bi-metallic single pole, single throw thermostat located in the motor windings. If the motor overheats due to low refrigerant flow or improper rotation, the thermostat will open. Because the thermostat is an automatic reset device it must be wired within a lockout safety circuit with a manual reset. It is compulsory to fit an external overload protector to protect against over current & phase loss.

    The SM range of compressors benefit from the improved design features below to achieve the highest efficiency:

    • Gas circulation, motor cooling and oil behaviour are improved on light commercial platform models by a new patented motor cap design.

    • Part protection and assembly reduces internal leaks and increases life durability.

    • Improved part isolation reduces greatly acoustic levels

    • Gas intake design induces higher resistance to liquid slugging.

    • R22 optimized and charged with mineral oil

    Note: Crankcase heater is not supplied with compressor & should be purchased separately if required.



  • General Specifications
    Swept Volume249.9 cm³/rev
    Suction Line ConnectionStub Tube 1-5/8" ODF
    Discharge Line ConnectionStub Tube 1-1/8" ODF
    Weight100 kg
    Oil Charge6.2 L
    Oil Type160P Mineral Oil
    Electrical Specifications
    Voltage380-400V / 3 / 50Hz
    Motor Type3PH
    Max Continuous Current35 amps
    Locked Rotor Amps175
    Max Operating Amps35 amps
    Crankcase Heater 1240 volts 75 watts
    Line to Line Resistance0.77 OHMS (+/- 7% @ 25ºC)

    1. Crankcase Heaters are not supplied with compressors & should be purchased separately if required

  • ContactorMC40A240V
    Thermal OverloadMT323K40
    Electronic OverloadGMP403P40A
    Crankcase Heater7773108
  • danfoss_manuerope_scroll_c

    Units Dimensions (mm)
    D317
    H678
    H1180
    H2643
  • R22
    Cond Temp (°C)Evaporating Temperature (°C)
    -10-5057.21015
    45Capacity (w)25877318293863746371500865510364906
    Input (w)11014110991117711248112741130811356
    Current (Amps)21.0521.1421.2221.2921.3121.3421.37
    50Capacity (w)24409301363668644131477085254261992
    Input (w)12198122851236612440124671250312554
    Current (Amps)22.4522.5522.7222.7222.7522.7922.83
    55Capacity (w)283543462541760451904982958904
    Input (w)135981368213759137871382613881
    Current (Amps)24.1524.2524.3524.3824.4224.48

    Note:

    11.1k Superheat, 8.3K Subcooling, 35°C Ambient
