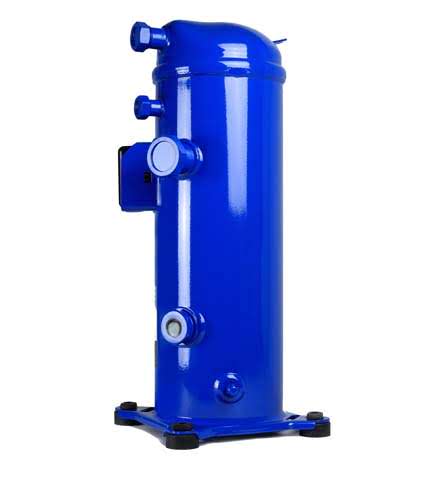

Danfoss Scroll Compressor 3PH R404A Low Temp POE Rotalock - LLZ018T4LQ9

Danfoss Scroll Compressor 3PH R404A Low Temp POE Rotalock

Part Number: LLZ018T4LQ9

Danfoss Scroll Compressor 3PH R404A Low Temp POE Rotalock

Part Number: LLZ018T4LQ9
Danfoss

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

  • Danfoss is a worldwide manufacturer of compressors and condensing units for refrigeration and HVAC applications. Danfoss have a wide range of high quality and innovative products that help your company to find the best possible energy efficient solution that respects the environment and reduces total life cycle costs.

    Danfoss have 40 years of experience within the development of hermetic compressors which places them amongst the global leaders in the industry. Today Danfoss operate from engineering and manufacturing facilities spanning across three continents.

    With its unique scroll design and manufacturing process flexibility, the new Danfoss LLZ refrigeration compressor offers a highly efficient solution for demanding refrigeration applications. LLZ refrigeration scroll compressors includes 5 sizes of low temperature scroll compressors designed for commercial refrigeration applications. These compressors are engineered for refrigeration and offer cooling capacity from 5 to 12 kW (4 to 10 HP) at common voltages and frequencies as well as any of the common refrigerants (R404A - R507).

    Thanks to its dedicated refrigeration design, the LLZ scroll compressor delivers a number of powerful advantages. With its high efficiency motor and optimised scroll design it reduces energy cost in normal operating conditions and delivers high capacity and an optimised pressure ratio for refrigeration applications.

    Danfoss scroll compressors are manufactured using the most advanced machining, assembly, and process control techniques. In design of both the compressor and the factory, very high standards of reliability and process control were first priority. The result is a highly efficient product with the highest reliability obtainable, and a low sound level.

    Note: Rotalock service valves & crankcase heaters are not supplied with compressor & should be purchased separately if required.

    This LLZ018T4LQ9 compressor is the replacement compressor for the Danfoss Optyma Slim OPLPHE098LLW10E condensing unit.



  • General Specifications
    Nominal Cooling Capacity4.1 kW
    Swept Volume97.6 cm³ cm³
    Suction Line Connection1-1/4" RotoLock Nut with Solder Spud
    Discharge Line Connection1" RotoLock Nut with Solder Spud
    Weight43 kg
    Oil Charge1.62 L
    Oil TypePVE Oil 160HV
    ElectricsScrew connectors 10-32 UNF x 9.5
    Electrical Specifications
    Voltage380-415/3/50 460/3/60
    Motor Type3PH
    Max Continuous Current15 amps
    Locked Rotor Amps90 amps
    Rated Load Amps10 amps
    Crankcase Heater 165watt, 230V Belt Type

    1. Crankcase Heaters are not supplied with compressors & should be purchased separately if required

  • Crankcase Heater120Z5040
  • Contact your local Airefrig Branch for Capacity Information
