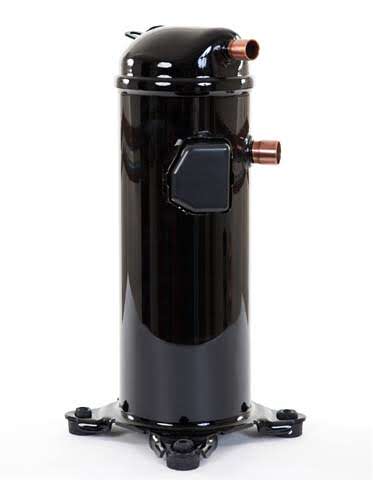

Danfoss Scroll Compressor 3PH R407C R22 PVE Oil Stub Tube - HCP109T4LC6

Danfoss Scroll Compressor 3PH R407C R22 PVE Oil Stub Tube

Part Number: HCP109T4LC6

Danfoss Scroll Compressor 3PH R407C R22 PVE Oil Stub Tube

Part Number: HCP109T4LC6

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

  • Danfoss H-Series Scroll Compressors are 100% gas cooled & fitted with an automatic reset line break protector mounted internally on the motor windings.

    The internal protectors respond to over-current, overheating & are designed to interrupt motor current under a variety of fault conditions such as failure to start, running overload & fan failure etc.

    If the internal overload protector trips it must cool down to approximately +60 degrees Celsius to reset. (Depending on the ambient temperature this may take up to several hours)

    Three Phase Sequence & Reverse Rotation Protection

    The compressor will only operate properly with the correct rotation. If a three phase compressor is wired incorrectly it will run but will have excessive noise, no pressure differential between suction & discharge, plus the suction will become warmer rather than cooler.

    The smaller range of Danfoss H-Series scroll compressors (up to HLP075) are able to run in reverse rotation safely for up to 150 hours without damaging the compressor, however phase monitors are still recommended.

    The larger range of Danfoss H-Series scroll compressors (HLP078 onwards) should never be run in reverse. Danfoss recommends phase rotation protection should always be fitted to prevent these compressors from operating in reverse rotation.

    Single Phase Compressors – Reverse Rotation

    Brief power interruptions may cause reverse rotation of single phase scroll compressors. The internal protection will stop the compressor & once cooled down will restart with correct rotation.

    Crankcase heaters are recommended on all stand-alone compressors & split systems. The heater should be energised for a minimum of 12 hours before initial start up (compressor service valves opened) & must remain energised whenever the compressor is off.

    External High Pressure Switches are required for HCP094,109,120 scroll compressors as these models are not equipped with internal pressure relief valves.

    Note: Crankcase heater is not supplied with compressor & should be purchased separately if required.



  • General Specifications
    Nominal HP9 HP
    Displacement25.9 m³/Hr
    Swept Volume148.79 cm³
    Suction Line ConnectionStub Tube 1-1/8" ODF
    Discharge Line ConnectionStub Tube 7/8" ODF
    Weight44.92 kg
    Oil Charge2.66 L
    Oil TypePVE Oil 320HV
    Electricssquare electrical box with screw terminals
    Electrical Specifications
    Voltage380-415/3/50
    Motor Type3PH
    Max Continuous Current24 amps
    Locked Rotor Amps110 amps
    Rated Load Amps16 amps
    Crankcase Heater 170watt, 230volt

    1. Crankcase Heaters are not supplied with compressors & should be purchased separately if required

  • ContactorMC32A240V
    Thermal OverloadMT323K25
    Electronic OverloadGMP403P40A
    Crankcase Heater120Z0059
  • danfoss_scroll_dim_3

    Units Dimensions (mm)
    D184
    H545
    H1369
    H2519
  • R22
    Cond Temp (°C)Evaporating Temperature (°C)
    -15-10-5057.210
    45Capacity (w)11942149711855422636271622932632081
    Input (w)7041689968026734668066546621
    Current (Amps)12.5912.1712.0612.0611.9611.811.59
    50Capacity (w)10849139011746121474258872798130646
    Input (w)7815758674277323725772377212
    Current (Amps)13.9313.271312.9312.8512.7312.57
    55Capacity (w)126011617920165245062654829147
    Input (w)839381487983788178567825
    Current (Amps)14.6314.1713.9913.8913.7913.67

    Note:

    Rating Conditions 11.1k Superheat, 8.3K Subcooling
    R407C
    Cond Temp (°C)Evaporating Temperature (°C)
    -15-10-5057.210
    45Capacity (w)11102139811738721375259982833531310
    Input (w)6845682968006752667766296567
    Current (Amps)10.2310.2610.2810.2510.119.989.81
    50Capacity (w)10294130221625420044244452667429511
    Input (w)7393738473637324726072177163
    Current (Amps)11.0511.0811.1111.0910.9510.8110.64
    55Capacity (w)119911505018643228232494527645
    Input (w)796879587930787878417795
    Current (Amps)11.9912.0412.0211.8911.7611.59

    Note:

    Rating Conditions 11.1k Superheat, 8.3K Subcooling
