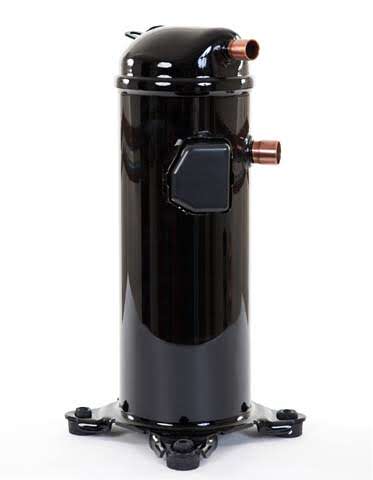

Danfoss Scroll Compressor 3PH R407C R22 PVE Oil Stub Tube - HLP075T4LC6

Danfoss Scroll Compressor 3PH R407C R22 PVE Oil Stub Tube

Part Number: HLP075T4LC6

Danfoss Scroll Compressor 3PH R407C R22 PVE Oil Stub Tube

Part Number: HLP075T4LC6
Danfoss

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

  • Danfoss H-Series Scroll Compressors are 100% gas cooled & fitted with an automatic reset line break protector mounted internally on the motor windings.

    The internal protectors respond to over-current, overheating & are designed to interrupt motor current under a variety of fault conditions such as failure to start, running overload & fan failure etc.

    If the internal overload protector trips it must cool down to approximately +60 degrees Celsius to reset. (Depending on the ambient temperature this may take up to several hours)

    Three Phase Sequence & Reverse Rotation Protection

    The compressor will only operate properly with the correct rotation. If a three phase compressor is wired incorrectly it will run but will have excessive noise, no pressure differential between suction & discharge, plus the suction will become warmer rather than cooler.

    The smaller range of Danfoss H-Series scroll compressors (up to HLP075) are able to run in reverse rotation safely for up to 150 hours without damaging the compressor, however phase monitors are still recommended.

    The larger range of Danfoss H-Series scroll compressors (HLP078 onwards) should never be run in reverse. Danfoss recommends phase rotation protection should always be fitted to prevent these compressors from operating in reverse rotation.

    Single Phase Compressors – Reverse Rotation

    Brief power interruptions may cause reverse rotation of single phase scroll compressors. The internal protection will stop the compressor & once cooled down will restart with correct rotation.

    Crankcase heaters are recommended on all stand-alone compressors & split systems. The heater should be energised for a minimum of 12 hours before initial start up (compressor service valves opened) & must remain energised whenever the compressor is off.

    External High Pressure Switches are required for HCP094,109,120 scroll compressors as these models are not equipped with internal pressure relief valves.

    Note: Crankcase heater is not supplied with compressor & should be purchased separately if required.



  • General Specifications
    Nominal HP6.5 HP
    Displacement17.9 m³/Hr
    Swept Volume102.75 cm³
    Suction Line ConnectionStub Tube 7/8" ODF
    Discharge Line ConnectionStub Tube 1/2" ODF
    Weight39.5 kg
    Oil Charge1.57 L
    Oil TypePVE Oil 320HV
    Electricssquare electrical box with screw terminals
    Electrical Specifications
    Voltage380-415/3/50
    Motor Type3PH
    Max Continuous Current16 amps
    Locked Rotor Amps100 amps
    Rated Load Amps10.3 amps
    Crankcase Heater 150watt, 230volt

    1. Crankcase Heaters are not supplied with compressors & should be purchased separately if required

  • ContactorMC18B240V
    Thermal OverloadMT323K18
    Electronic OverloadGMP223P22A
    Crankcase Heater120Z0057
  • danfoss_scroll_dim_2

    Units Dimensions (mm)
    D184
    H455
    H1280
    H2422
  • R22
    Cond Temp (°C)Evaporating Temperature (°C)
    -15-10-5057.210
    45Capacity (w)8225103101277715588187052019522092
    Input (w)4550451544884464443744224403
    Current (Amps)8.728.718.698.688.688.688.7
    50Capacity (w)748495871204114808178521929621134
    Input (w)5075501149674935491249024890
    Current (Amps)9.759.719.689.669.669.679.69
    55Capacity (w)87031117213925169231833320129
    Input (w)559455235476544654385430
    Current (Amps)10.9210.8710.8410.8310.8410.86

    Note:

    Rating Conditions 11.1k Superheat, 8.3K Subcooling
    R407C
    Cond Temp (°C)Evaporating Temperature (°C)
    -15-10-5057.210
    45Capacity (w)7990100621251415384187112039322534
    Input (w)4216419841744138408140443998
    Current (Amps)6.946.956.976.956.856.766.65
    50Capacity (w)740793701169514423175901919421236
    Input (w)5170515351345107506550354999
    Current (Amps)7.497.517.537.517.427.327.21
    55Capacity (w)86271082813413164201794619890
    Input (w)570456905669563556105580
    Current (Amps)8.138.168.158.067.967.85

    Note:

    Rating Conditions 11.1k Superheat, 8.3K Subcooling
