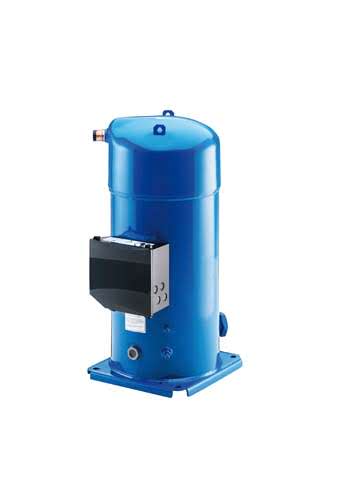

Danfoss Scroll Compressor 3PH R410A POE Oil Stub Tube - SH161A4ALC

Danfoss Scroll Compressor 3PH R410A POE Oil Stub Tube

Part Number: SH161A4ALC

Danfoss Scroll Compressor 3PH R410A POE Oil Stub Tube

Part Number: SH161A4ALC
Danfoss

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

  • Danfoss is a worldwide manufacturer of compressors and condensing units for refrigeration and HVAC applications. Danfoss have a wide range of high quality and innovative products that help your company to find the best possible energy efficient solution that respects the environment and reduces total life cycle costs.

    Danfoss have 40 years of experience within the development of hermetic compressors which places them amongst the global leaders in the industry. Today Danfoss operate from engineering and manufacturing facilities spanning across three continents.

    The SH range of compressors benefit from the improved design features below to achieve the highest efficiency:

    • Gas circulation, motor cooling and oil behaviour are improved on light commercial platform models by a new patented motor cap design.

    • Part protection and assembly reduces internal leaks and increases life durability.

    • Improved part isolation reduces greatly acoustic levels.

    • Gas intake design induces higher resistance to liquid slugging.

    • R410A optimized and dedicated scroll profile.

    Note: Crankcase heater is not supplied with compressor & should be purchased separately if required.

  • General Specifications
    Nominal Cooling Capacity34.6 kW
    Nominal Heating Capacity34.5 kW
    Swept Volume151.7 cm³ cm?
    Suction Line ConnectionStub Tube 1 3/8" ODF
    Discharge Line ConnectionStub Tube 7/8" ODF
    Weight69 kg
    Oil Charge3.3 L
    Oil TypePOE Oil 160SZ
    ElectricsScrew 4.8 mm
    Electrical Specifications
    Voltage400/3/50
    Motor Type3PH
    Max Continuous Current35 amps
    Locked Rotor Amps158 amps
    Rated Load Amps23.6 amps
    Crankcase Heater 148watt, 230V Belt Type

    1. Crankcase Heaters are not supplied with compressors & should be purchased separately if required

  • Crankcase Heater120Z0668
  • Contact your local Airefrig Branch for Capacity Information
