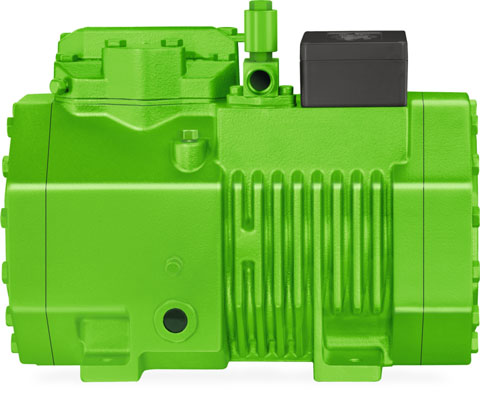

BITZER OCTAGON SL SUBCRITICAL CO₂ COMPRESSORS
BITZER CO₂ compressors have been proving their worth in subcritical CO₂ applications since 1998. The OCTAGON SL series is a closely stepped range of models with a cooling capacity ranging between 2.7 and 80 kW (–35° C/–5° C) for subcritical CO₂ applications. Alongside its well-known attributes, this SL compressor series also offers improved energy efficiency. In addition, the application limits were pushed to a higher condensing temperature, whilst the admissible pressure load was expanded on the high and low pressure side (53/30 bar).
Technical Features:
- Additional strengthening of housing and drive gear
- Specially adapted motors for condensing temperatures of up to 15 °C
- Reduction of internal flow losses
Highly efficient and robust working valves
- Large cross sections
- Improved compression process
- Wear-resistant drive gear with advanced multi-layer bearings
- Special cylinder head design
Multi-cylinder configuration with optimised bore ratio
- Low noise and vibration levels
- Optimal for operation with a frequency inverter designed to increase and control capacity
- Low oil carry over thanks to centrifugal lubrication
