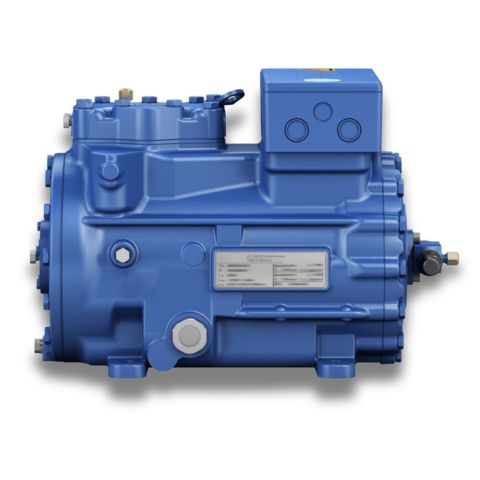

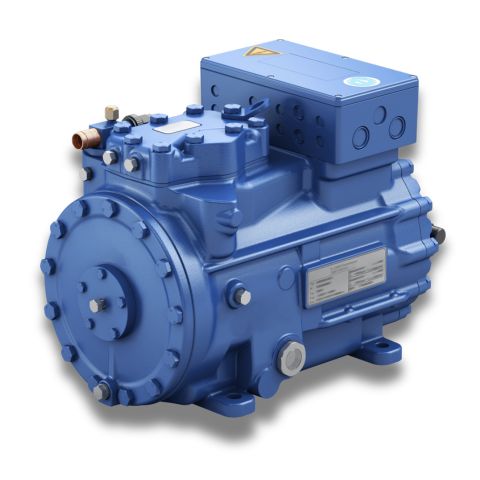

BOCK Semi-Hermetic Compressor HGX22E/160-4 (16007) - HGX22E1604

BOCK Semi-Hermetic Compressor HGX22E/160-4 (16007)

Part Number: HGX22E1604

BOCK Semi-Hermetic Compressor HGX22E/160-4 (16007)

Part Number: HGX22E1604
Danfoss BOCK

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

  • The Danfoss BOCK® HGX range of single-stage semi-hermetic compressors offer traditional suction-gas-cooled technology. These compressors are of the highest quality and excel with their easy maintenance, efficiency and reliability.

    There are seven family series of 2,4,6 & 8 cylinder compressors with multiple models in each family. Family series: HGX12P, HGX22e, HGX34e, HGX44e, HGX56e, HGX66e & HGX88e.

    Special features:

    • Efficiency, reliability and the highest level of quality
    • Service-friendly design (e.g. with replaceable drive motors)
    • Oil pump lubrication
    • Electronic motor protection
    • Suitable for conventional or chlorine-free HFC refrigerants (ie: R134A, R404A, R507, R407A, R407C, R407F R448A, R449A, R450A, R452A, R513A)



    For new advancements in efficiency BOCK has now updated its entire semi-hermetic compressor range. The new models are marked with the letter "e" (= efficiency) and all offer decisive mechanical improvements such as more compact design and easier-to-use connections.

    The entire range of gas-cooled commercial BOCK compressors is now available in the new, optimised design. In addition to their uses in the fields of refrigeration and air-conditioning the new compressors are ideally suited for refrigeration in supermarkets.

    They offer improved efficiency over their predecessors, greater displacement stages, a more compact structural design and a new configuration of connections.

    To increase efficiency and reduce energy consumption the new models profit from a new and advanced valve plate system, electrical motors from the latest generation and enhanced gas flow.

    The re-designed connections match the gas connections normally found in the sector to ensure that no adaptation work is necessary when the user invests in a replacement compressor. The foot mountings of the new compressor likewise conform to sector standards.

  • BOCK Compressor FamilyHGX22e Series
    BOCK Legacy Code16007
    BrandDanfoss BOCK
    Displ m³/Hr13.7
    Maximum Working Current6.4 amps
    Motor TypeDOL
    Number of Cylinders2
    Oil Charge1.1L
    Oil TypeBOCKlub E55
    Voltage220-240V D / 380-420V Y -3- 50Hz
    Weight73kg
  • BOCK Semi-Hermetic Compressor HGX22E/160-4 (16007)
